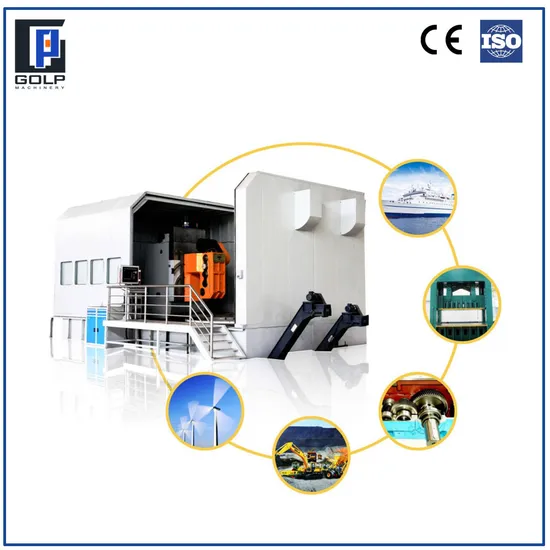

2m Dia Large CNC Helical /Internal/External Spur Gear Milling Cutting Machine

Product Description

Process matching
Rough milling
Large cutting depth and appropriate metal removal rate are suitable for the rough processing of gears
Semi-finishing milling
Using semi-finishing milling cutter discs on the machine tools equipped with fine milling can meet the requirements of efficient processing before grinding, optimize processing efficiency and comprehensive costs.
Fine milling
Using fine milling cutter discs on the machine tools equipped with fine milling can achieve GB8 level accuracy
Process combination
Rough milling-fine milling
The tool change process on the same equipment can complete the entire processing process of the workpiece, and the fine milling cutter disc can also be directly used for processing and forming.
Gear milling-gear grinding
For high-precision and high-hardness workpieces, semi-finishing milling cutter discs are used, and small normal allowances are left for milling teeth, and gear grinding is performed.

Technical performance	G-2000/16		G-3000/20		G-3000/25
Maximum processing modulus (mm)	20	26	26		26
Cutter diameter (mm)	360-400	380-420	380-420		380-420
Cutter rod diameter (mm)	70	90	80	90	80	90
Maximum helix angle (°)	±22.5		±22.5		±22.5
Minimum external gear ring root diameter (mm)	/	550	/	1100	/	1400
Maximum external gear ring outer diameter (mm)	/	2000	/	2500	/	3000
Minimum internal gear ring inner diameter (mm)	550	/	1100	/	1400	/
Maximum internal gear ring outer diameter (mm)	2000	/	2500	/	3000	/
Cutter center overhang depth (mm) A	600	/	600	/	600	/
Distance between the center of the cutter and the back wall (mm) B	610	/	610	/	610	/
Repeat positioning accuracy of the worktable (")	≤±3		≤±3		≤±3
Repeat positioning accuracy of the X/Z axis (mm)	≤±0.01		≤±0.01		≤±0.01
Spindle speed (rpm)	70-140		70-140		70-140
Spindle diameter runout (mm)	0.01		0.01		0.01
Diameter of rotary table (mm)	1600		2000		2500
Maximum allowable load of the worktable (kg)	12000		20000		25000
Main motor power/total power (kW)	30/60	37/70	37/70		37/70
Machine weight (kg)	45000		55000		60000
Machine dimensions (length x width x height, m)	6*3.5*5		8*4*5		8.5*4.5*5

Material: 42CrMo Hardness: HB280-HB320 Module: 16mm Number of teeth: 177 Tooth width: 135mm Helix angle: 0°

Cutting method	Processing method	Gear milling
		First cut	Second cut
	Cutting depth	33mm	36mm
	Feed speed	350mm/min	380mm/min
	Processing time	3.2h	3.0h
		6.2h
	Cooling method	Air cooling

Milling advantages
Application scope
High-efficiency and high-precision machining of internal/external spur/helical gears, soft tooth surface and hard tooth surface gears;
High efficiency
Powerful cutting of materials with hardness HB350;
Low cost
Dry air cooling; Interchangeable inserts with increasing service life;
Reliability
Adopting a variety of advanced detection methods and cross-sensing technology;
User-customized machining path planning
Able to achieve specified tooth line, drum shape, K shape, tilt, other given curves, symmetrical/asymmetrical tooth shape modification;
Typical user site pictures
