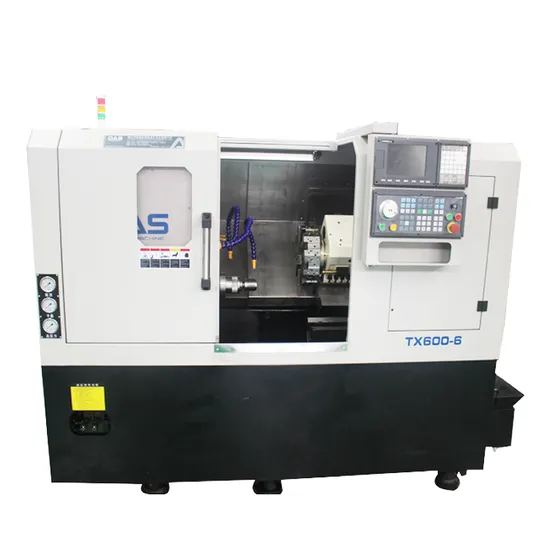

High Quality CNC Lathe Machine Good Price Tx600-6 Swiss CNC Lathe Precise CNC Lathe

Product Description

DAS CNC lathe machine Dual spindle dual-channel with Y axis Product Description
Power tool with single drive mechanism can be mounted in all positions Maximum torque of 25NM for heavy-duty cutting increased number of tools, 2nd turrent that can be equipped with.
The number of tool mounting faces has been increase to 8 from 6 on previous models. In addition, a double placne tool holder can be mounted, allowing a significant increase in the number of tools to be mounted. What's more, up to 4 powerhead tool holders can be installed.
The 1st turret and 2nd turret can machine both the 1st spindle and 2nd spindle simultaneously, allowing for higher machining efficiency.
SY type can cope with complex shape machining by the Y-axis function of the 1st turret.
By overlapping control of the 2nd spindle's movement command, which can move in the X/Z direction, with the 1st turret's axis movement command,machining time can be significantly reduced.

		TX600-6	TX600-8	TX600-10
Max.Swing Diameter	mm	520	550	550
Tool installation	-	12 (12 stations turret)
Center height of the turret	mm	80
Max. number of tools	pcs	12
Spindle nose	-	A2 - 5	A2 - 6	A2 - 8
Max.Machining diameter	mm	Φ450	Φ300	Φ300
Chuck size	inch	6"	8"	10"
Spindle speed	r/min	0 - 4500	0 - 4500	0 - 3200
Spindle bore	mm	Φ56	Φ62	Φ86
Max.Through-rod material diameter	mm	Φ45	Φ52	Φ75()
X/Z axis travel	mm	230/460	260/430	230/390
X/Z axis fast moving speed	m/min	30	30	30
X/Z axis repeatability	mm	±0.005	±0.005	±0.005
X/Z axis motor power	kw	1.8/1.8	1.8/1.8	1.8/1.8
center height	mm	80	120	120
Max.cutting length	mm	450	450	400
Spindle motor power	kw	7.5	7.5	11
System Min.resolution	mm	0.001	0.001	0.001
Machine Power	kw	15	15	19
Net Weight	kg	3500	3800	3800
Dimensions(L×W×H)	mm	2800×1550×1800	2800×1550×1800	3200×1650×2000

1. Super rigidity The body structure is one piece, with a solid base and a downfeed centre, 45° saddle design for good vibration damping and reduced deformation, providing a very stable base for the head and turret, 45° sloping bed structure for easy loading and unloading of steel and smoother chip removal.
2. Modern and popular control components The DAS machine is available with the optional FAUNC 0iTF control package and Siemens 828D control package, 8.4' display, 10.4' display, additional interfaces, etc.
3. Superb price/performance ratio The machine of German origin has the best components, such as SAUTER turret and NSK bearings, which guarantee the high precision performance of the machine series. At the same time we offer competitive prices, making the machine series superbly cost effective.
4. User-friendly design Minimal space occupation, but mostly in line with the actual working area, full protective cover, humanized aesthetic design, stainless steel telescope cover, providing a safe and clean working environment and more durable.
5. Rich choice Electric turret, servo turret, power turret, upgraded spindle power, upgraded spindle torque, upgraded cylinder and chuck inner diameter, drawer type cooling tank, tool probe, oil mist remover, etc. for customers to choose from.
6. High efficiency assembly line operation (optional) Thanks to the advanced truss drive, multiple machines can be combined together to complete a task, greatly reducing the drive time between each process and increasing efficiency.


Good Feedback
Foshan Shunde Guoqiang Daosheng Industrial Co., Ltd. is located in Chencun, the important machinery town in Shunde District,Foshan. Sticking to the human-centering management, we are in possession of a group of highly competent technical personnel, a market oriented experienced sales team. In the gesture of sincere cooperation, we strive to establish a promise keeping and quality .Our major products include CNC series gang tool type lathes , turret lathes, take heart-type lathes and milling-type lathes,featuring space saving, low cost and diversified arrangement etc. They can also meet the demand for precise processing of different products. The products find widespread application in the manufacture of cars, motorcycles and accessories thereof,electronic industry, optical instruments, clocks and watches as well as special motors etc.We have precise lathe equipment, complete quality guarantee system, prompt goods supply as well as perfect after-sales service,which ensure us
the first consideration when you purchase high-precision machine tools.

---
