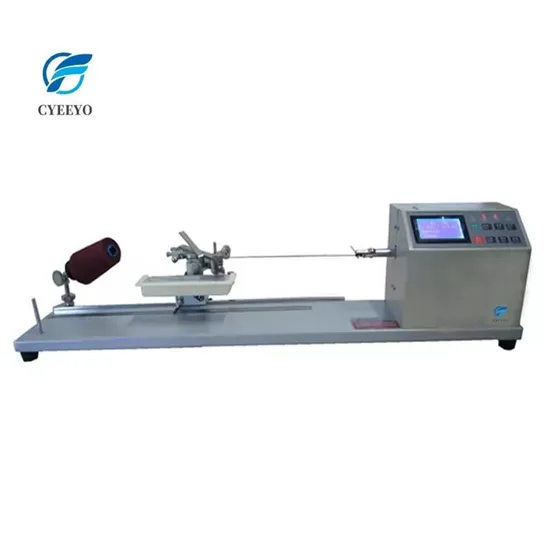

Evenness Electronic Twisting Abrasion Textile Yarn Twist Twister Counter Tester Test Machine

Product Description

Evenness Electronic Twisting Abrasion textile yarn twist twister counter tester Test Machine Product Description
Used for testing the twist nonhmogeneitiy, the twist unevenness, and the twist shrinkage of various yarns.

Standard
GB/T2543.1/2 FZ/T10001 ISO2061 ASTM D1422 JIS L1095

Technical parameter

1.Working pattern:Computer program control, data processing,printing out testing results2.Testing method:a.average untwist slip elongation b.max.elongation of average untwist c.direct counting method d.untwist-retwist method A e.untwist-retwist method B f.three times untwist-retwist method3.Specimen length:10,25,50,100,200,250,500mm4.Measuring range of twist:1~6000.0 twist/10cm,1~6000.0 twist/m5.Elongation range of untwist:max.60mm 6.Measuring max.twist shrinkage:20mm 7.Speed:200~2000r/min8.Pre-tension:0.5~171.5cN9.External dimension:920×170×220mm 10.Power source:AC220V 50Hz 25W11.Weight:16kg

1.Working pattern:Computer program control, data processing,printing out testing results2.Testing method:a.average untwist slip elongation b.max.elongation of average untwist c.direct counting method d.untwist-retwist method A e.untwist-retwist method B f.three times untwist-retwist method3.Specimen length:10,25,50,100,200,250,500mm4.Measuring range of twist:1~6000.0 twist/10cm,1~6000.0 twist/m5.Elongation range of untwist:max.60mm 6.Measuring max.twist shrinkage:20mm 7.Speed:200~2000r/min8.Pre-tension:0.5~171.5cN9.External dimension:920×170×220mm 10.Power source:AC220V 50Hz 25W11.Weight:16kg
