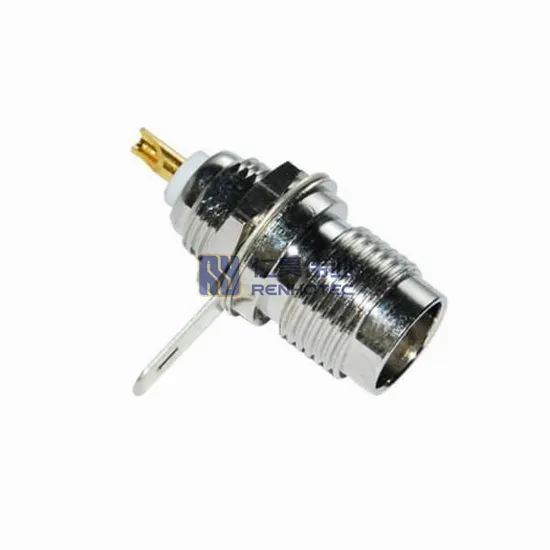

TNC Connector, TNC Female Connectors

Product Description

Welcome to Renhotec Group Ltd! Our Slogan is Make Connection Easier...Product Description
The TNC connector series is a miniature, threaded weatherproof series with a constant 50 Ω impedance and a frequency range of DC to 11 GHz. The TNC series shares its contact design with the BNC series, utilizing a threaded coupling nut for secure mating and higher frequency performance than the BNC. TNC connectors are produced with standard and reverse polarity. Reverse polarity is a keying system accomplished with a reverse interface, and ensures that reverse polarity interface connectors do not mate with standard interface connectors. RENHOTEC accomplishes this by inserting female contacts into plugs and male contacts into jacks to ensure quality. Other manufacturers may use reverse threading to accomplish reverse polarity keying. As a result of their versatility and durability, TNC connectors are ideal for a variety applications.Features:-Threaded coupling interface ensures connector with not de-couple in vibration-intense applications Durable construction
-Expansive product line includes designs for many common cable types

Impedence	50 Ω / 75 Ω
Frequency Range	DC - 6 GHz (DC - 11 GHz / 18 GHz on Extended Range Designs)
Voltage Rating	500 Volts Peak
Dielectric Withstanding Voltage	1500 VRMS Max
Insulation Resistance	5000 MΩ Min
Center Contact Resistance	1.5 MΩ Max
Outer Contact Resistance	0.2 MΩ Max
Temperature Range	−65°C to +165°C
Mating Cycles	500 Min
Coupling Mechanism	Threaded
Body Material	Brass / Zinc Diecast
Body Finish	Gold / Nickel / Silver / Tin / White Bronze
Contact Material	Beryllium Copper / Brass / Phosphor Bronze
Contact Finish	Gold / Silver
Insulator Material	Delrin / Nylon / Polypropylene / PTFE

ApplicationHigh performance TNC coaxial connectors with thread coupling for vibration environment, Mainly used for Cellular Mobile Phones, Aviation Controls, Telemetry, and GPS, Wireless Base Station, Microwave Components, Radar, Networks, Antenna Mounts, Machine to machine communications, Security Devices, Instrumentation, etc…
Company Profile
Renhotec Hardware Electronics Co., Ltd.RENHOTEC is a full-service leading global supplier of a wide variety of standard and custom RF coaxial connectors, cable assemblies and unique solutions for today's cutting edge applications. RENHOTEC is fully committed to meeting the needs of our customers, we offer a wide range of RF connector interface types and are able to produce custom products for specific applications. Our team is always focused on designing, developing and taking pride in custom innovative solutions to meet our customers' needs. - Acquired ISO9001, ISO14001, QC080000 and TS16949 certification.- All items are in line with EU ROHS and REACH environmental requirements.- Markets supported include automotive, medical, instrumentation, telecom and wireless etc.
Our AdvantagesCustomized DesignProfessional engineer team help you with drawing design and provide you suggestions based on your special electrical and environmental performance requirements.Technology ImprovementEstablish and optimize the process of the production line. Continuous improvement to make sure the targeted quality and yield achieved and maintainQuality Inspection CenterWith professional inspection center to test the electrical, mechanical and environmental performance and ensure the high quality.
FAQQ :How can I get a sample to check your quality?
A : Free sample is available.
Q :What is your term of delivery?
A : Usually, we use EXW. As well, FOB, CIF and DDP are all available. Others can be netotiatable.
Q :When can I get the price?
A : All the quotaitons can be handled within 6-12 hours.
Q: Could you accept custom products?
A: Yes, Any custom design can be offered.
Q :What about the lead time for the mass production?
A :Honestly, it depends on the order quantity and the season you place the order. Normally, it is about 20-25 days for qty around 50K.

---
