XCMG 45ton Container Reach Stacker for Sale

Product Description

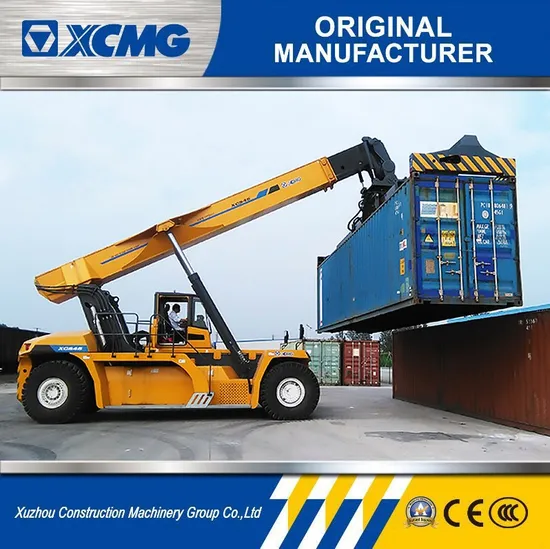

XCMG 45ton Container Reach Stacker.
The XCS45 container reach stacker is suitable for handling and stacking containers in ports (wharfs), yards, train stations and terminals. With proper attachments, it can be used to handle logs, wind turbine tower sections and steel pipes among other applications.

Features and Advantages:
1. Efficient Operation
Compact structure and better adaptability in job sites contribute to 15% improvement in comprehensive working efficiency and 12,000 containers per year increase in handling quantity.
Leading technology for optimizing and matching the whole machine contributes to reduction of 5% in overall length and completion of best-in-class turning radius, which makes it easy to drive in narrow job sites, removing the need to frequently move the machine forward and backward.

2. Comfortable driving
Fourteen humanization-oriented designs are for operator to be free of fatigue, even if continuously working for 8 hours.

3. Safety
Experience of 76 years in crane safety control and 2 unique safety control technologies contribute to better operation safety.

4. Energy saving
Two energy saving measures contribute to 10%~15% reduction in fuel consumption and approx. RMB 50,000 per year reduction in fuel cost.
Product Parameters

tem			Unit	Parameters
Lifting performance		Max. lifting capacity	kg	45000
		Stacking capacity	--	5-5-4
		Max. hoisting speed (without/with load)	mm/s	350/200
		Max. lowering speed (without/with load)	mm/s	330/260
		Max. lifting height	mm	15100
Traveling performance		Max. travel speed (without/with load)	km/h	27/23
		Drive mode	--	4×2, Front axle drive
		Max. grade-ability	%	30%
		Min. turning radius	m	8.1
		Steering mode	--	Rear axle steering
Weight		Curb mass	kg	70995
Dimension		Outline dimension (L×W×H)	mm	11295×6052×4489
		Wheel base	mm	6000
		Track (front wheel/rear wheel)	mm	3024/2750
		Min. ground clearance	mm	365
		Approach angle/Departure angle	°	17.5/26.5
Power	Engine	Model	--	CumminsQSM
		Power/rotation speed	kW/r/min	250/2100
		Emission standard	--	Off-road U.S.EPA Tier3, EU Stage IIIA
	Transmission	Model	--	ZF 5WG261
		Gear	--	FWD 5, REV 3
	Drive axle	Model	--	Kessler D102PL241

Product Show
Company Profile
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.

---
