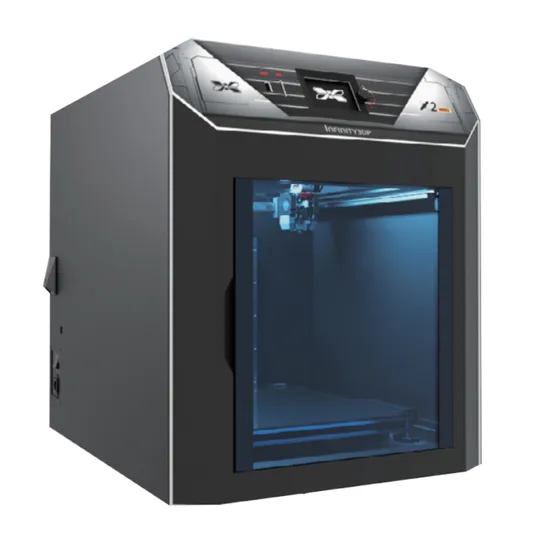

Fused Deposition Modelling Fdm PLA PETG ABS ASA PC Plastic Printing Fast Stable Industrial-Grade 3D Printers

Product Description

Product Parameters

Basic information
3D printing technology	Fused Deposition Modelling(FDM)
Appearance size	W504*D562*H600 mm
Print volume	300*300*260 mm
Net weight	35kg / 77ibs
Supported languages	Chinese | English | Japanese (shipping depends on country and region)
Body structure	Insulation cabin
Kinematic structure	Core XY
Nozzle
Number of nozzles	1
Nozzle form	Remove the SE super nozzle module in seconds
Feeding mode	Proximal
Nozzle diameter	0.5mm (standard) |0.2-0.6mm
Nozzle temperature
Standard configuration	Disassemble SE Base super print head module in seconds at 400ºC
Optional	Disassemble SE Super print head module in seconds at 500ºC
Hot bed / hot cabin
Hot bed	Carbon Fiber Base Plate - High Power Cache platform
Heating bed temperature ( max. )	150ºC
Software / Warranty Certification
Slicing software	Cura Infinity 3DP Edition
Supported file formats	.3mf / .stl
Safety certification CE
Printing ability
Printing speed (max./long-term stable printing)	300mm/s
Empty running speed(max.)	500mm/s
Printing layer height (min./Z axis)	0.01mm (10µ)
Support soft materials	Shore A 95-50
Excellent performance	PLA,PETG,ABS,ASA,PC,PPS,PA, PA-CF,PA-GF,PP,TPE,TPU
Wire diameter	1.75mm
Electric control / safety
Correction	Factory level and quality calibration
Power consumption	600W
Application voltage	100-110VAC/6A or 200-240VAC/3A
Computing processor	ARM Cortex-M4
File transfer	SD/USB Cable
Detection mechanism	Reminder when materials are used up
Mechanism
Touch screen	3.5"/320*480 pixels
XYZ stepper motor	57 frames 0.9ºC
Motor driver chip	32-bit DSP vector control stepper driver module, supports ARC instructions
XY axis transmission components	GT2 belt / japan,THK H-class linear slide
XY axis motion architecture	Core XY
Z-axis transmission components	Japan,THK C3 grade ball screw / THK 4 chain with H grade ball slide rail*2
Z-axis positioning	Mechanical structure light-sensitive positioning probe

Product Description
1.Remove the SE super nozzle module in seconds,One-click disassembly without tools, saving time and effort, highest efficiency.2.Adaptable to any FDM 3D printing machine , a must- have choice for modification.3.Specially treated metal pipes are durable and non-sticky.4.SE+ high floe nozzle can print all materials below 500 degrees, SE Base\SE nozzle it can print on all materials below 400 degrees, and it can be printed without clogging when changing.
5.The total weight ids about 300g. The extruder is independently developed and the discharge is stable and more accurate.
6.Printable on mixed materials including:
Antistatic ESD, Carbon Fiber, Glass Fiber, Foaming, Metal powder Mineral and modified.
Performance Features1.Insulation cabin design, Reduce the influence of external temperature2.Reduce warpage, stabilize printing quality, and improve layer bonding strength.3.Industrial grade structural parts, Strengthened structure.4.Core XY Architecture, Stable mechanical structure+high-precision SE printing nozzle.5.Quick-access platform-carbon fiber base plate, suitable for printing high-temperature plastics below 300 degrees. Company Profile Qingdao Yinglang Import and Export Co., Ltd. is a high-quality foreign trade enterprise of industrial products focusing on global marketing and sales. As a subsidiary of Yinglong, Yinglang is specifically responsible for Yinglong's overseas markets. Extending the high-quality technology of Yinglong's advanced manufacturing industry, we mainly sell our own designed and produced additive manufacturing equipment, 3D printers, electronic steering systems, lawn mowers, electric logistics vehicles, final assembly integration and other related products. We are committed to serving the world Provide customers with first-class products and solutions.Product examplesPackaging & Shipping Certifications
