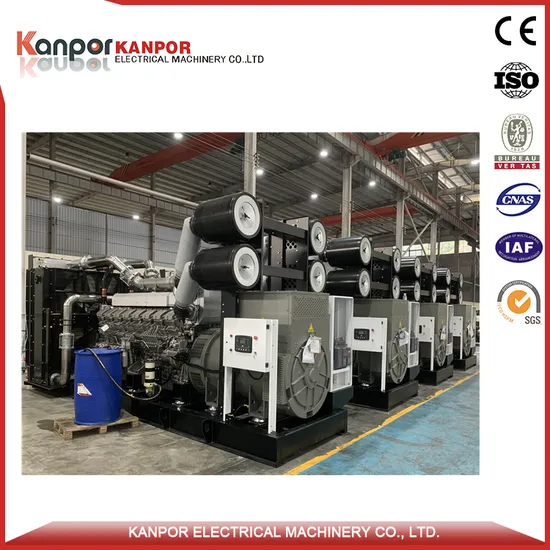

Mitsubishi (SME) 90-2000kVA Diesel Power Generator

Product Description

1. GENERATOR DATA
Voltage Available:
50Hz: 380-400-415V/220-230-240V;
60Hz: 220-380-416-440-480V/110-208-220-240V
Any special voltage is also available as client's request
Prime Power:
Comply with GB/T2820-97(eqv.ISO8528).
Genset can run unlimitedly under certain power range.
One hour 10% over load in every 12 running hours is allowed;
Standby Power:
standby power is the limit value of maximum output for emergency use.
It is off-oil power,overloading is prohibited
2. MAIN SPECIFICATION

Genset Model		KPM100	KPM725	KPM825	KPM1375	KPM1500
Rated Power	KW/KVA	73/91	536/670	600/750	1000/1250	1080/1350
Standby Power	KW/KVA	80/100	580/725	660/825	1100/1375	1200/1500
Rated Voltage	V	220V/127V 380V/220V 400V/230V 415V/240V 480V/277V 600V/346V
Speed	RPM	1500/1800
Rated frequency	Hz	50/60
Engine Model		S6K-DT	S6R2-PTA	S6R2-PTAA	S12R-PTA	S12R-PTA2
Engine Power	KW	89.7	635	710	1220	1315
Air intake way		Turbo	Turbo	Turbo	Turbo	Turbo
Governor		Electronic	Electronic	Electronic	Electronic	Electronic
Cylinder	QTY	6	6	6	12	12
Bore*Stroke	mm*mm	1302×130	170×220	170×220	170×180	170×180
Displacement	L	6.373	29.96	29.96	49.03	49.03
Fuel Consumption	g/kw.h	245	235	235	235	235
Compression Ratio		17:1	14.1:1	14.1:1	14:1	13.5:1
Alternator Model		STF-274C	STF-354F	STF-634B	STF-634G	STF-734B
Voltage Regulation		AVR
Excitation Method		Brushless
Open Type Size	mm	2400x800x1300	4200x1400x1800	4200x1400x1800	4800x1800x2200	4800x1800x2200
Open Type Weight	kg	1380	3600	4260	7800	8200
Soundproof Size	mm	2800x1050x1400	5000x1600x2000	5000x1600x2000	5800x1900x2250	5800x1900x2250
Soundproof Weight	kg	1960	5260	5900	9860	10800

Genset Model		KPM1600	KPM1800	KPM2000	KPM2200
Rated Power	KW/KVA	1164/1455	1318/1650	1455/1818	1600/2000
Standby Power	KW/KVA	1280/1600	1440/1800	1600/2000	1760/2200
Rated Voltage	V	220V/127V 380V/220V 400V/230V 415V/240V 480V/277V 600V/346V
Speed	RPM	1500/1800
Rated frequency	Hz	50/60
Engine Model		S12R-PTAA2	S16R-PTA	S16R-PTA2	S16R-PTAA2
Engine Power	KW	1404	1620	1790	1939
Air intake way		Turbo	Turbo	Turbo	Turbo
Governor		Electronic	Electronic	Electronic	Electronic
Cylinder	QTY	12	16	16	16
Bore*Stroke	mm*mm	170×180	170×180	170×180	170×180
Displacement	L	49.03	65.37	65.37	65.37
Fuel Consumption	g/kw.h	235	235	235	235
Compression Ratio		13.5:1	14:1	13.5:1	14:1
Alternator Model		STF-734D	STF-734D	STF-734E	STF-734F
Voltage Regulation		AVR
Excitation Method		Brushless
Open Type Size	mm	5200x2200x2350	5800x2200x2230	5800x2200x2230	5900x2200x2300
Open Type Weight	kg	9500	11500	12800	15500
Soundproof Size	mm	7000x2200x2350	8000x2200x2300	8000x2200x2300	8000x2200x2300
Soundproof Weight	kg	12300	15600	16900	21000

3. PRODUCT FEATURES
(1).Full control panel with power indicator light and oil light.
(2).Emergency shutdown for low oil pressure and high water temperature.
(3).Large fuel tank ensure continuous running.
(4).Low noise & vibration.
(5).Compact structure.
(6).Reliable performance.
(7).Easy for installation and maintenance.
(8).50Hz and 60Hz both are available for choice

---
