| US$198,836.00 | 1 Set (MOQ) |

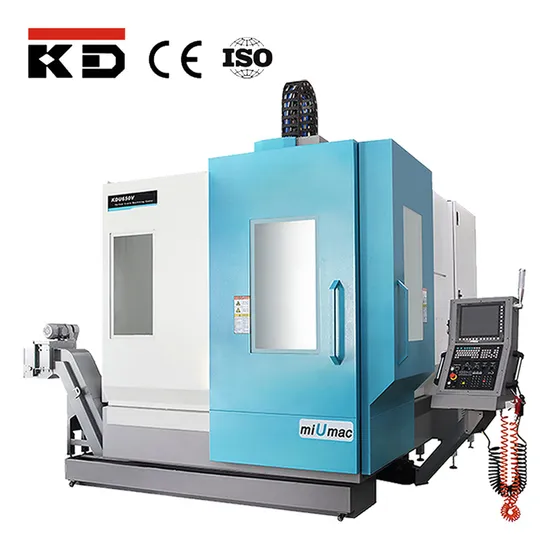

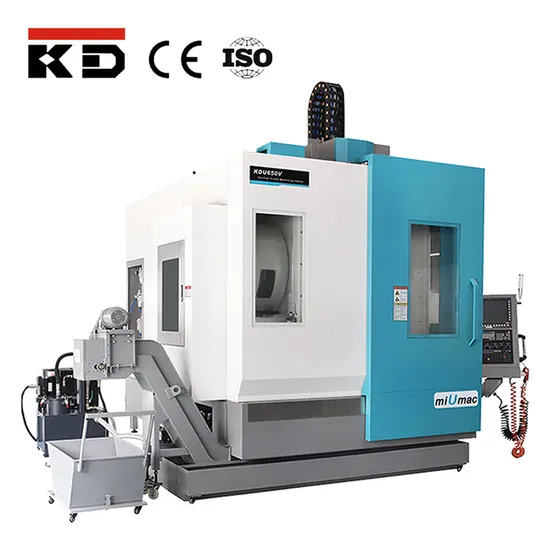

| MODELS | KDU650 |
| TRAVEL | |
| X axis | 700mm |
| Y axis | 450mm |
| Z axis | 400mm |
| Spindle end to table | 200-600mm |
| Table size | Ф650m |
| SPINDLE | |
| Taper bore of spindle | BT40 |
| Spindle power | 15kw |
| Spindle speed | 12000rpm |
| Driving type | Direct type |
| FEED | |
| X/Y/Z fast feed | 24/ 24/ 24m/min |
| B axis swing angle | ±110º |
| C axis swing angle | 360º |
| B axis max speed | 50rpm |
| C axis max speed | 100rpm |
| ATC | |
| Tool number | 24 |
| Max. tool size (Without adjacent tool) | Ф150mm |
| Max.tool length | 300mm |
| Max.tool weight | 8kg |
| ACCURACY | |
| Repeatability accuracy(X/Y/Z) | 0.006mm |
| Repeatability accuracy(B/C) | 4 sec |
| Position accuracy(C) | 20 sec |
| OTHERS | |

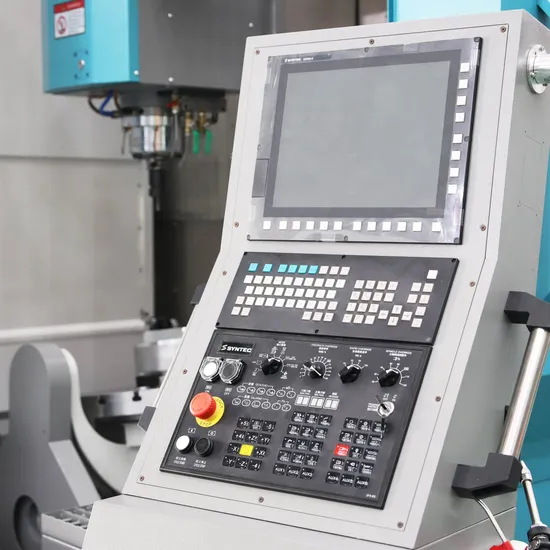

| CNC controller | SIMENS 840D SL |
| Net weight | Around 11000kg |
| Dimension (LxWxH) | 5300x2650x3100mm |
