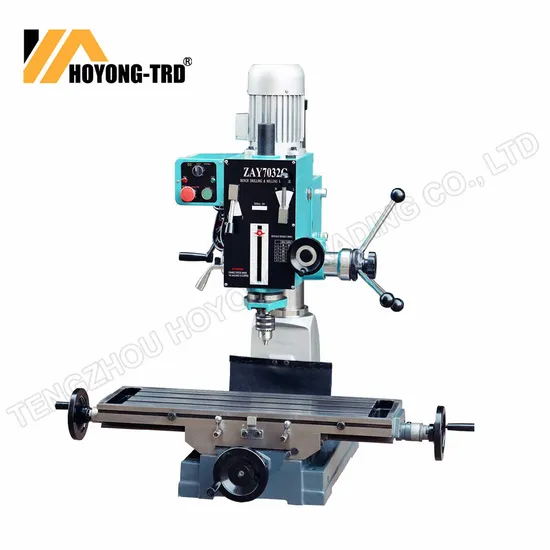

Mini High Quality Milling Drilling Machine Zay7020g Zay7032g Zay7040g Zay7045g

US$700.00-2,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZAY7020G ZAY7032G ZAY7040G ZAY7045G
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Layout
Vertical
Number of Shaft
3
Hole Diameter
<50mm
Drill Capacity
20mm
Taper
Mt3
Motor
0.55kw
Spindle Travel
85mm
Ace Milling Capacity
63mm
Transport Package
Plywood Case
Specification
125kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84595900
Production Capacity
10 PCS/Month

Product Description


DRILLING MILLING MACHINE FEATURES:
1.Gear-driven type and round column 2. Milling, drilling, boring, reaming
3. Headstock swivels 360 horizontally
4. Micro feed precision
5. Adjustable gibs on table precision.
6. Strong rigidity, powerful cutting and precisely positioning.
SPECIFICATIONS:
ITEM ZAY7020G ZAY7032G ZAY7040G ZAY7045G
Drilling capacity 20mm 32mm 40mm 45mm
Face milling capacity 63mm 63mm 80mm 80mm
End milling capacity 20mm 20mm 32mm 32mm
Distance from spindle nose to table 439mm 440mm 440mm 440mm
Min.distance from spindle
axis to column		 197.5mm 272.5mm 272.5mm 272.5mm
Spindle travel 85mm 130mm 130mm 130mm
Spindle taper M.T.3 or R8 M.T.3 or R8 M.T.4 or R8 M.T.4 or R8
Step of spindle speed 6 6 6 6
Range of spindle speed 50Hz 95-1420 r.p.m 80-1250 r.p.m 80-1250 r.p.m 80-1250 r.p.m
60Hz 115-1700 r.p.m 95-1500 r.p.m 95-1500 r.p.m 95-1500 r.p.m
Swivel angle of headstock
(horizontally/perpendicularly)		 360°/±90° 360°/±90° 360°/±90° 360°/±90°
Table size 520×160mm 800×240mm 800×240mm 800×240mm
Forward and backward travel of table 140mm 175mm 175mm 175mm
Left and right travel of table 290mm 500mm 500mm 500mm
Motor power 0.37KW 0.75KW(1HP) 1.1KW(1.5HP) 1.5KW(2HP)
Net weight/gross weight 130kg/190kg 315kg/365kg 318kg/368kg 320kg/370kg
Packing size 680×750×1000mm 770×880×1160mm 770×880×1160mm 770×880×1160mm
