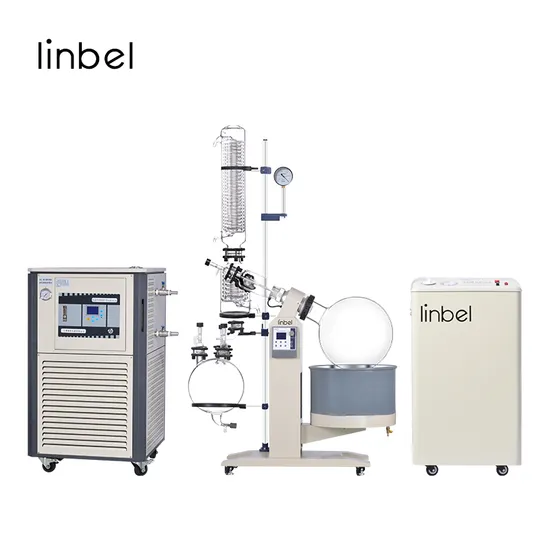

1L 2L 5L 10L 20L 50L 100 Liter Mini Explosion Ex-Proof Laboratory Rotavapor Rotovap Vacuum Rotary Evaporator with Pump Chiller

Product Description

Model	R1005/1006	R1010	R1020	R1050
Optimum Ambient(ºC)	5~35
Power Supply(V/Hz)	Single phase 220/60		Three phase 380/60
Host speed	Digital display frequency conversion stepless speed regulation	Digital DC stepless speed regulation
Motor Rotating Control(rpm)	10~140	20~130		20~110
Rotary motor(W)	40	Brushless 250
Temperature Control(ºC)	Digital Display,Room Temp-99
Maximum vacuum(Pa)	399.9(≤3mmHg)
Rotary Flask(L)	5/6 FlangetypeØ50	10 FlangetypeØ125	20 FlangetypeØ125	50 FlangetypeØ125
Collection Flask(L)	3	5	10	20
Condenser	Vertical double serpentine tube	Vertical, main cold + sub-cool, high efficiency three-return condenser
Condensation area(m2)	0.27	Main cold 0.42 Deputy cold 0.22	Main cold 0.8 Deputy cold 0.39	Main cold 0.91 Deputy cold 0.52
Evaporation Speed(L/h)	Water≥2 Alcohol≥4	Water≥3.5 Alcohol≥7	Water≥5 Alcohol≥13	Water≥10 Alcohol≥23
Water bath material	Stainless Steel
Bath Size(mm)	Φ300×170	Φ350×220	Φ450×260	Φ550×320
Lift Type	Electric(Automatic) lift
Lift Distance(mm)	0~150	0~160	0~190	0~180
Motor Power(kW)	2.0	3.0	4.0	4.0(220V)
Dimension(mm)	860×500×1000	920×550×1700	1250×600×2100	1320×770×2340

FAQ:
Q1. What is your products range?
• Industry water chiller, recirculating cooling chiller, rotary evaporator, alcohol recovery equipment, short path distillation kit, glass molecular distillation equipment, falling film evaporator, jacketed glass reactor and other lab equipment.
• Know more
Q2. Are you trading company or manufacturer?
• We are professional manufacture of lab equipment and we have our own factory.
Q3. Do you provide samples? Is it free?
• Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Q4. Do you have warranty?
• Yes, we offer 1 year warranty for the spare part.
Q5. How long is your delivery time?
• Generally it is within 7 working days after receiving the payment if the goods are in stock. Or it is 15 working days if the goods are not in stock, depending on order quantity.
Q6. What is your terms of payment?
• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.

---
