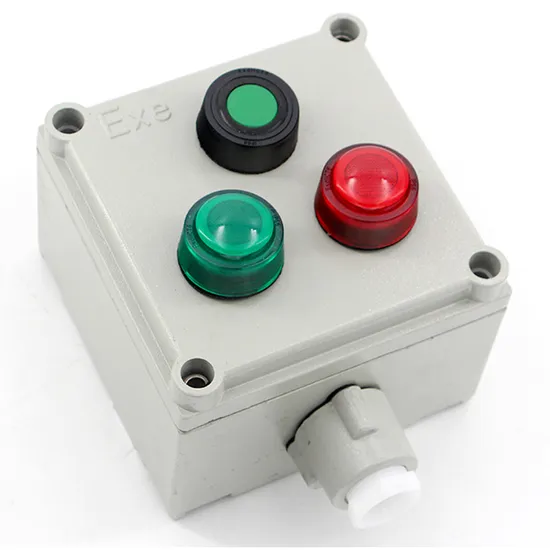

High Quality La53-220V 10A Flame-Proof Push Button Explosion Proof Switch Three Push Button Spring Return Push Button

Product Description

Product Parameters

Rated voltage	Rated current	Explosion proof sign	Degree of protection	Anti corrosion grade	Cable outer diameter	Inlet thread
AC220V	10A	Ex db eb IIC T6 Gb Ex tb IIIC T80 Db	IP65*IP66	WF1*WF2	Φ10~Φ14mm	G3/4

Products Description 1 Aluminum alloy die-casting shell, after high-speed shot peening treatment, the surface is sprayed with high-voltage electrostatic coating, which is corrosion resistant and anti-aging.
2. Exposed stainless steel fasteners have high anti-corrosion performance.
3. This series of products adopts built-in explosion-proof button.
4. The shell and cover adopt curved sealing structure, which has good waterproof and dustproof performance. 5. Steel pipe or cable wiring is acceptable.
Security Level: WF1*WF2,Ex db eb IIC T6 Gb,Ex tb IIIC T80°C Db
Fuctions: Control Equipment Switches In Hazardous Environments
Applicable Scope: Zone 1, Zone 2, Zone 21, Zone 22;IIA, IIB, IIC Explosive Gas Environments 1. It is applicable to the places in Zone 1 and Zone 2 of explosive gas environment;
2. It is applicable to the places in Zone 21 and 22 of combustible dust environment;
3. Suitable for IIA, IIB and IIC explosive gas environment;
4. Applicable to T1~T6 temperature groups;
5. It is applicable to hazardous environments such as oil exploitation, oil refining, chemical industry, gas station, offshore oil platforms, oil tankers, and metal processing.
About Us VR FAQ A: Are you a manufacturer or a trading company?
Q: We are a manufacturer and provide OEM services. Our main products are explosion-proof lightings, explosion-proof distribution box, explosion-proof cable gland, explosion-proof fans, explosion-proof junction box and anti-corrosion & dustproof & waterproof lights.

A: What certificates do you have?
Q: We have passed ATEX, IECEx, and with a lot of National Patents.

A: What filed are your products used in?
Q: They are widely used in petroleum chemical, aerospace, coal electrical power, railway, metallurgy, shipbuilding, medicine, marine, wine-making, fire fighting, municipal, gas station and other industries.

A: Can I have a sample order?
Q: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

A: Will you accept customized?
Q: Yes. Please inform us and confirm the design firstly based on our sample.

Thanks for your visiting and hope to cooperate!! ($10 free for the first order)
