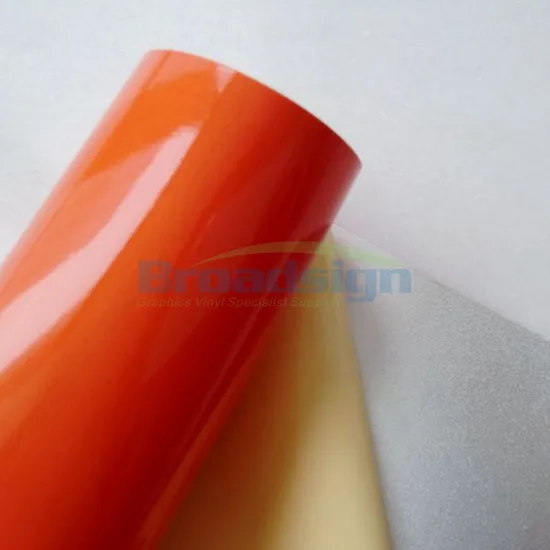

Orange Acrylic Reflective Adhesive Vinyl Sheet Br3200

Product Description

Commercial Grade Reflective Vinyl BR3200
Specifications:
Surface Texture: Acrylic
Thickness of film: 0.10mm
Liner Weight: 145gsmSize: 0.61X45.7M, 1.22X45.7MOperation Method: Screen Printing, and Computer CuttingOperation Temperature: + 18 - 28ºCService Life: 3years
Features:
*Tearable, with extensibility;
*Screen Printable
Applications:
*Road Traffic Signs;
*Road Safety Signs;
*Temporary Construction Signs:
*Other Signs and Advertising.
This is Orange acrylic BR3200:
Reflective Colors: Color Chromaticity:
Standard light source : D65 Observation condition: 45/0 Observation angle: 2 degree.

color	Color Chromaticity				Luminance Factor
	X Y	X Y	X Y	X Y
White	0.350 0.360	0.300 0.310	0.285 0.325	0.355 0.375	≥0.27
Yellow	0.545 0.454	0.464 0.534	0.427 0.483	0.487 0.423	0.16---0.40
Red	0.690 0.310	0.658 0.342	0.569 0.341	0.595 0.315	0.03---0.10
Green	0.007 0.703	0.026 0.399	0.177 0.362	0.248 0.409	0.03-0.10
Blue	0.078 0.170	0.137 0.038	0.210 0.160	0.150 0.220	0.01---0.10

Coefficient of Retro Reflection:

Observation Angle	Entrance Angle	White	Yellow	Red	Green	Blue
0.33°	-4 °	30	15	5	4	2.5
