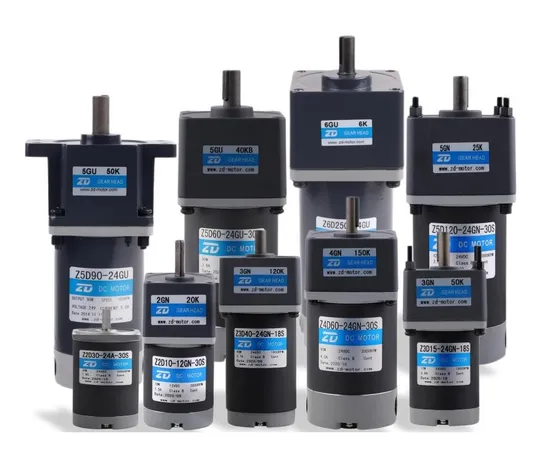

60mm-104mm 10W-200W Watt High Torque Permanent Magnet 12 Volt 24V Brush DC Electric Gear Motor

Product Description

Introduction ZD Leader has a wide range of micro motor production lines in the industry, including DC Motor, AC Motor, Brushless Motor, Planetary Gear Motor, Drum Motor, Planetary Gearbox, RV Reducer and Harmonic Gearbox etc. Through technical innovation and customization, we help you create outstanding application systems and provide flexible solutions for various industrial automation situations.
• Model Selection
Our professional sales representive and technical team will choose the right model and transmission solutions for your usage depend on your specific parameters.
• Drawing Request If you need more product parameters, catalogues, CAD or 3D drawings, please contact us.
• On Your Need We can modify standard products or customize them to meet your specific needs. Product Parameters DC Gear Motor

MOTOR FRAME SIZE	60 mm / 70mm / 80mm / 90mm / 104mm
MOTOR TYPE	Brushed
OUTPUT POWER	10W / 15W / 25W / 40W / 60W / 90W / 120 W / 140W / 180W / 200W / 300W(Can Be Customized)
OUTPUT SHAFT	8mm / 10mm / 12mm / 15mm ; Round Shaft, D-Cut Shaft, Key-Way Shaft (Can Be Customized)
Voltage type	12V,24V,90V,220V
Accessories	Electric Brake / Encoder
GEARBOX FRAME SIZE	60 mm / 70mm / 80mm / 90mm / 104mm
Gear Ratio	3K-200K
Type Of Pinion	GN Type / GU Type
Gearbox Type	Regular Square Case gearbox / Right Angle Gearbox / L Type Gearbox
