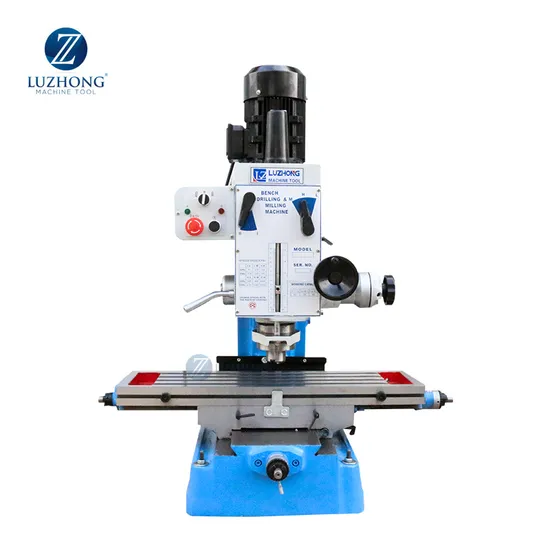

ZX7016/ZX7025/ZX7032/ZX7045 High quality cheaper price milling and drilling machine

Product Description

High quality cheaper price milling and drilling machine
Product Description
The main performance characteristics:
Reinforced type gear, transmission torque large
B1 type optional2-speed motor, spindle speed range widely.
Application:
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
Product Parameters
Product main technical parameters:

Specifications	ZX7016	ZX7025	ZX7032	ZX7045
Max. Drilling capacity (mm)	16	25	31.5	45
Max. face mill capacity (mm)	40	63	80	80
Diameter of vertical milling (mm)	10	13	22	28
Diameter of column (mm)	/	/	/	/
Spindle travel (mm)	80	110	130	120
Distance spindle axis to column generating line(mm)	182	240	202	260
Max. Distance spindle nose to table (mm)	360	510	460	475
Spindle taper	MT2	MT3	MT3	MT4
Spindle speeds range (r/min)	320~3300	290~2150	100~2150	95~1600
Spindle speeds series	12	5	12	6
Spindle feeds (mm/r)	/	/	/	/
Dimension of worktable surface (mm)	420×152	555×195	Standard : 730x210 select: 820x240	Standard : 730x210 select: 820x240
Table travel (mm)	230×120	240×140	Standard :450×170 select: 540x170	Standard :450×170 select: 540x170
Dimension of base (mm)	/	/	/	/
Overall height (mm)	900	1130	1100	1050
Main motor (W)	550	750 (6P)	Single-phase:1100 Three-phase:1500	Single-phase:1100 Three-phase:1500
Coolant motor (W)	/	/	/	/
G.W/N.W(Kg)	100/75	190/160	285/250	318/278
Packing dimension (cm)	65×58×77	87×67×102	97×77×124	97×77×116

Detailed Photos

Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
