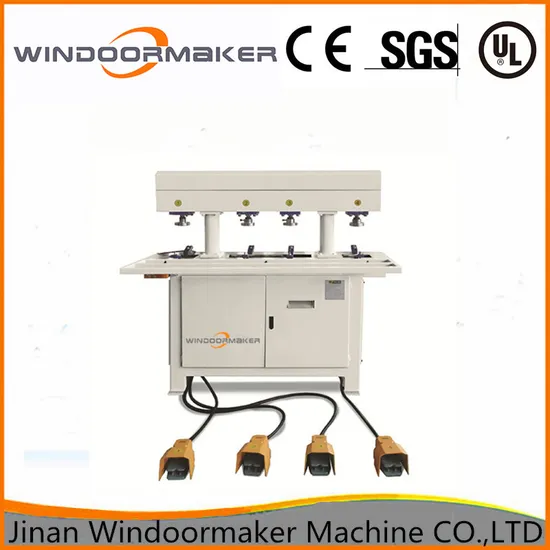

Window Machine Aluminum Window Hole Punching Machine for Window Door Making

Product Description

Product Description
Specification:
Used for aluminum windows and doors hole punching , Punching process, by changing processing position, various types profiles can be processed. High hydraulic power and good processing quality. There is four cylinders can control each head work together or seperate It can install 4 dies with many punching tool at one time. Technical parameter

Power supply	Made to order
Motor power	4kw
Motor rotational speed	1420r/min
Rated oil pump pressure	16MPa
Capability of oil box	50L
Press nominal pressure	50KN
Closing height	215mm
Worktable size	400*1400mm
Contour dimension	1500×750×1400mm (L×W×H )
Weight	600KG

Certifications

Company Profile

Jinan Windoormaker Machine CO., Ltd. Is an engineering company that has been in business for over 10 years which specialized in the manufacture and supply the UPVC & aluminum window and door machines.
Windoormaker is a factory with cover area of 15000 m² . During the years developing, has made many devotes of machine improving, introducing new equipment and technology innovation for the production.


Machine at old customer


Packaging & Shipping

---
