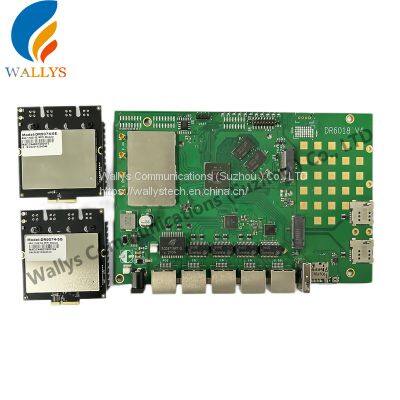

Wallys industrial 5g router/IPQ6010/QCN9074 WiFi Card Support OpenWRT IPQ6010 802.11ax 2x2 2.4G&5G
Wallys has been specializing in product design & manufacturing and delivering superior OEM/ODM services in wireless communications. Dedicated to innovative designs for wireless modules. Customization is also supported, We have 90% of the world market, We're a supplier to Facebook.
EMAIL:sales@wallystech.com
WEB:/
In the complex market, Wallys products stand out and are affirmed by partners. From 802.11 a - ax, Wallys always keeps up with the most cutting-edge wireless technology, aimed to help customers take the preemptive opportunities to occupy the market and lead a win-win cooperation.
Quad-core ARM 64bit A53 1.8GHz Processor
1GB DDRL3L System Memory
8MB NOR Flash, 256MB NAND Flash
Supports Dynamic Frequency Selection (DFS)
2x2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate
2x2 On-board 5GHz radio, up to 1201Mbps physical Data Rate
Parameter
| Rating
| Unit
|
Supply Voltage
| 24V~48V(DC Jack)
| V
|
Operating Temperature Range
| -40 to +70
| ºC
|
Storage Temperature Range
| -45 to +105
| ºC
|
Operating Humidity Range
| 5 to +95 (non-condensing)
| %
|
Symbol
| Parameter
|
CPU
| Qualcomm-Atheros IPQ6010
|
CPU Frequency
| Quad-core ARM 64 bit A53 1.8 GHz processor
|
System Memory
| 1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design
|
Ethernet Port
| 1 x 1Gbps Ethernet Ports & POE 1x 1Gbps Ethernet Ports
|
NGFF Slot
| M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0(For WiFi Module)
|
SD Card Slot
| 1x SD Card Slot(Option)
|
USB /header
| 1x USB 3.0 Port(Option)
|
POE
| 24V~48V passive POE/Active POE(Suport 802.3bt)
|
DC Jack
| 24V~48V power supply
|
LED header
| 2.0 pitch pin header
|
Serial Port
| 1x Serial Port 4 Pin Connector
|
Wireless
| On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chain
On-board 2x2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain
4 x MMCX Connectors
|
Nor Flash
| 8MB
|
Nand Flash
| 256MB
|
DDR
| 256MB~512MB
|
Dimension
| 125mm x 105mm x 20mm
|
| Radio TX Specifications(5180MHz-5825MHz)
|
Operating Mode
| Data Rate
| Power
| Tolerance
|
1 Chain
| 2 Chains
|
5Ghz 802.11ax HE20
| MCS0
| 20dBm
| 23dbm
| ±2dB
|
MCS1
| 20dBm
| 23dBm
| ±2dB
|
MCS2
| 20dBm
| 23dBm
| ±2dB
|
MCS3
| 20dBm
| 23dBm
| ±2dB
|
MCS4
| 19dBm
| 22dBm
| ±2dB
|
MCS5
| 18dBm
| 21dBm
| ±2dB
|
MCS6
| 17dBm
| 20dBm
| ±2dB
|
MCS7
| 16dBm
| 19dBm
| ±2dB
|
MCS8
| 15dBm
| 18dBm
| ±2dB
|
MCS9
| 14dBm
| 17dBm
| ±2dB
|
MCS10
| 13dBm
| 16dBm
| ±2dB
|
MCS11
| 13dBm
| 16dbm
| ±2dB
|
5Ghz 802.11ax HE400
| MCS0
| 20dBm
| 23dbm
| ±2dB
|
MCS1
| 20dBm
| 23dBm
| ±2dB
|
MCS2
| 20dBm
| 23dBm
| ±2dB
|
MCS3
| 20dBm
| 23dBm
| ±2dB
|
MCS4
| 19dBm
| 22dBm
| ±2dB
|
MCS5
| 18dBm
| 21dBm
| ±2dB
|
MCS6
| 17dBm
| 20dBm
| ±2dB
|
MCS7
| 16dBm
| 19dBm
| ±2dB
|
MCS8
| 15dBm
| 18dBm
| ±2dB
|
MCS9
| 14dBm
| 17dBm
| ±2dB
|
MCS10
| 13dBm
| 16dBm
| ±2dB
|
MCS11
| 13dBm
| 16dbm
| ±2dB
|
5Ghz 802.11ax HE80
| MCS0
| 20dBm
| 23dbm
| ±2dB
|
MCS1
| 20dBm
| 23dBm
| ±2dB
|
MCS2
| 20dBm
| 23dBm
| ±2dB
|
MCS3
| 20dBm
| 23dBm
| ±2dB
|
MCS4
| 19dBm
| 22dBm
| ±2dB
|
MCS5
| 18dBm
| 21dBm
| ±2dB
|
MCS6
| 17dBm
| 20dBm
| ±2dB
|
MCS7
| 16dBm
| 19dBm
| ±2dB
|
MCS8
| 15dBm
| 18dBm
| ±2dB
|
MCS9
| 14dBm
| 17dBm
| ±2dB
|
MCS10
| 13dBm
| 16dBm
| ±2dB
|
MCS11
| 13dBm
| 16dbm
| ±2dB
|
| Radio TX Specifications(2412MHz-2482MHz)
|
Operating Mode
| Data Rate
| Power
| Tolerance
|
1 Chain
| 2 Chains
|
2.4Ghz 802.11ax HE20
| MCS0
| 23dbm
| 26dbm
| ±2dB
|
MCS1
| 23dBm
| 26dBm
| ±2dB
|
MCS2
| 23dBm
| 26dBm
| ±2dB
|
MCS3
| 23dBm
| 26dBm
| ±2dB
|
MCS4
| 23dBm
| 26dBm
| ±2dB
|
MCS5
| 23dBm
| 26dBm
| ±2dB
|
MCS6
| 23dBm
| 26dBm
| ±2dB
|
MCS7
| 22dBm
| 25dBm
| ±2dB
|
MCS8
| 21dBm
| 24dBm
| ±2dB
|
MCS9
| 21dBm
| 24dBm
| ±2dB
|
MCS10
| 18dBm
| 21dBm
| ±2dB
|
MCS11
| 17dbm
| 20dbm
| ±2dB
|
2.4Ghz 802.11ax HE40
| MCS0
| 23dbm
| 26dbm
| ±2dB
|
MCS1
| 23dBm
| 26dBm
| ±2dB
|
MCS2
| 23dBm
| 26dBm
| ±2dB
|
MCS3
| 23dBm
| 26dBm
| ±2dB
|
MCS4
| 23dBm
| 26dBm
| ±2dB
|
MCS5
| 23dBm
| 26dBm
| ±2dB
|
MCS6
| 23dBm
| 26dBm
| ±2dB
|
MCS7
| 22dBm
| 25dBm
| ±2dB
|
MCS8
| 21dBm
| 24dBm
| ±2dB
|
MCS9
| 21dBm
| 24dBm
| ±2dB
|
MCS10
| 21dBm
| 24dBm
| ±2dB
|
MCS11
| 19dbm
| 22dbm
| ±2dB
|
GPIO Pin Mapping
|
Pin
| Signal
| Pin
| Signal
|
GPIO_0
| AUDIO_MUTE_BUT
| GPIO_1
| QPIC_BUSY_N
|
GPIO_2
| MIC_VOL_M
| GPIO_3
| QPIC_WE_N
|
GPIO_4
| QPIC_RE_N
| GPIO_5
| QPIC_DAT4
|
GPIO_6
| QPIC_DAT5
| GPIO_7
| QPIC_DAT6
|
GPIO_8
| QPIC_DAT7
| GPIO_9
| WPS
|
GPIO_10
| QPIC_CLE_N
| GPIO_11
| QPIC_NAND_CE_N
|
GPIO_12
| QPIC_DAT1
| GPIO_13
| QPIC_DAT2
|
GPIO_14
| QPIC_DAT3
| GPIO_15
| QPIC_DAT0
|
GPIO_16
| MIC_KPD_PWR_N
| GPIO_17
| QPIC_ALE
|
GPIO_18
| KYPD_HOME_N
| GPIO_19
| GND
|
GPIO_20
| Boot_Config(PULL_DOWN)
| GPIO_21
| MUTE_ON
|
GPIO_22
| ADC_RST
| GPIO_23
| WSA_SWR_CLK
|
GPIO_24
| WSA_SWR_DATA
| GPIO_25
| PWM_LED_RST
|
GPIO_26
| Boot_Config(PULL_DOWN)
| GPIO_27
| WSA_EN_R
|
GPIO_28
| WSA_EN_L
| GPIO_29
| PDM_CLK0
|
GPIO_30
| PDM_DATA0
| GPIO_31
| PDM_CLK1
|
GPIO_32
| PDM_DATA1
| GPIO_33
| EXT_MCLK2_ADC
|
GPIO_34
| MIC_VOL_P
| GPIO_35
| LED_5G
|
GPIO_36
| PCIE0_WAKE
| GPIO_37
| LED_2GS
|
GPIO_38
| SPI0_CLK
| GPIO_39
| SPI0_CS_NI
|
GPIO_40
| SPI0_MISO
| GPIO_41
| SPI0_MOSI
|
GPIO_42
| BLSP2_SCL
| GPIO_43
| BLSP2_SDA
|
GPIO_44
| BLSP2_UART_RX
| GPIO_45
| BLSP2_UART_TX
|
GPIO_46
| BLSP5_SCL
| GPIO_47
| BLSP5_SDA
|
GPIO_48
| NC
| GPIO_49
| Boot_Config(PULL_DOWN)
|
GPIO_50
| LED_USB0
| GPIO_51
| BT_PRIORITY_PTA11
|
GPIO_52
| WLA_ACTI_PTA12
| GPIO_53
| BT_ACT_PTA10
|
GPIO_54
| Boot_Config(PULL_DOWN)
| GPIO_55
| NC
|
GPIO_56
| NC
| GPIO_57
| NC
|
GPIO_58
| NC
| GPIO_59
| PCIE0_CLK_REQ
|
GPIO_60
| PCIE0_RSTn
| GPIO_61
| NC
|
GPIO_62
| SD_DET
| GPIO_63
| SD_WP
|
GPIO_64
| MDC
| GPIO_65
| MDIO
|
GPIO_66
| SD_LDO_EN
| GPIO_67
| NC
|
GPIO_68
| NC
| GPIO_69
| SPI_CLK_UART_RTSn
|
GPIO_70
| SPI_CS_UART_CTSn
| GPIO_71
| SPI_MISO_UART_RX
|
GPIO_72
| SPI_MOSI_UART_TX
| GPIO_73
| USB_OTG
|
GPIO_74
| NC
| GPIO_75
| Malibu_RESET
|
GPIO_76
| NAPA_INT0
| GPIO_77
| NAPA_RESET
|
GPIO_78
| QTZ_INT
| GPIO_79
| QTZ_RESET
|
Boot_Config Switch1(S7)
|
Boot_Config
| Boot up InterfaceSelect
|
S7A
| S7B
| S7C
|
|
0
| 0
| 0
| SPI NOR. (Default)
|
0
| 0
| 1
| eMMC
|
0
| 1
| 0
| QPIC, Parallel NAND
|
0
| 1
| 1
| USB3.0
|
1
| 0
| 0
| SPI-NOR-GPT
|
S7D
| Boot up InterfaceSelect
|
0
| Boot from code ram.(Default)
|
1
| Boot from ROM
|
Boot_Config Switch2(S9)
|
Boot_Config
| Boot up InterfaceSelect
|
0
| No auth.(Default)
|
1
| Auth is required
|
>>
