Coiler Machine for Commercial Car Steel Wheel Rim Production Line

Product Description

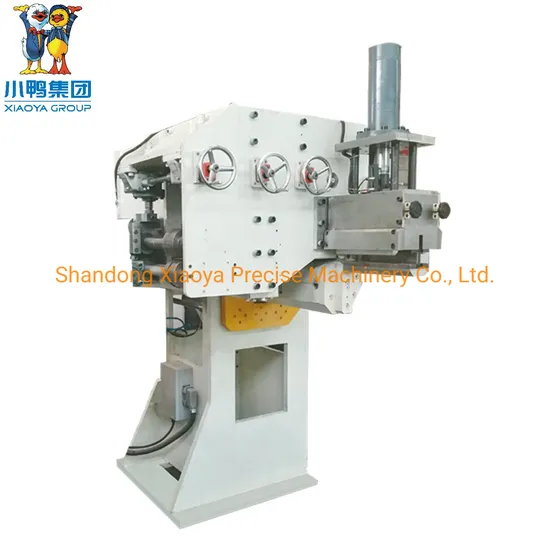

Coiling Machine
As a major wheel rim machinery manufacturer, we supply a variety of equipment, including the coiler machine for the wheel rim production line. This rim machine set consists of the feeder, deburrer, stamper and coiler. Functions of each part 1. The feeder is used to manually feed a single piece of a rim band.2. The deburrer is equipped to remove burrs at both edges of the rim band, protecting molds and operators from scratches during the next processing steps.3. The stamper presses the needed marks on the rim band, including specification, model, manufacturer production date and other information.4. The coiler is a wheel rim forming machine used to automatically coil the cut to length rim bands.5. Flattening weld joint of both edges, it is conducive to weld clamping on next step.

Process Pictures for Reference

Main Features 1. Therim equipment has a horizontal structure, chain transmission, and hand wheel for adjustment. This ensures the easy operation and maintenance.2. The stamping head on the stamper can be quickly changed according to different needs.3. The discharge end can be designed with an automatic discharging platform that is conducive to the automatic transportation of the work piece.4. The wheel rim coiler machine features an integrated design, that melds deburring, stamping and coiling into one machine, saving labor and floor space.5. The main shaft is engineered from the NSK brand high performance bearing, ensuring the long service life.6. The horizontal coiler machine uses an electrical control system from Schneider, making it safe and reliable.7. The coiler used in the small wheel rim line is able to flatten the welding joint. After it has been formed into a coil, the work piece can be directly conveyed to the butt welding process.8. The coiler can provide automatically and manually feeding function based on customer demand.

Product Parameters

Applications		Passenger Car	Commercial Vehicle	agricultural vehicle
Rim diameter range		13 to 17 inches	17.5 to 26 inches	20 to 54 inches
Rim band thickness		≤ 4mm	≤ 8 mm	≤ 8 mm
Rim band width		3 to 10inch	5.5 to 16inch	7 to 28inch
Main machine specifications	Feeder	Available	Available	Available
	Deburrer	JMC-100	JMC-100	JMC-100
	Stamper	DZJ-120	DZJ-120	DZJ-120
	Coiler	QYJ-600	QYJ-800	QYJ-1500
Input power	Deburrer power	4 Kw	5.5Kw	5.5 Kw
	Coiler power	7.5 Kw	11Kw	11Kw
	Total input power	11.5 Kw	16.5Kw	16.5Kw
Coiling roller diameter		155mm	165mm	175mm
Coiling roller speed		88r/min	63r/min	63r/min
Power supply		AC 380V/3phase/50Hz, Can be customized

TRADE TERMS
Delivery Time The delivery time will be around 1-4 months from the date of receipted down payment. Loading sea port: Qingdao, China
Payment TermsT/T, L/C are both acceptable
Factory Testing The Buyer can send engineers to Manufacturer's factory for testing those machines before delivery if it is necessary, and the cost of Buyer's engineers including flight, train, hotel and meals shall be at Buyer's own cost.
Warranty 1-year

---
