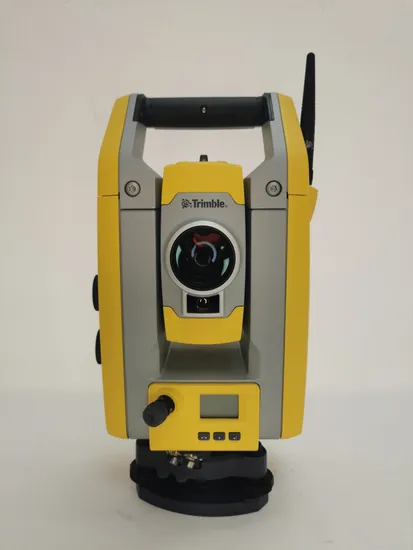

Excellent High Accuracy Trimble S5 2″ Robotic Total Station Geographic Surveying Instrument

Product Description

Product Description Built on proven Trimble technologies--including Trimble SurePoint and MagDrive™ technology, and our DR Plus EDM--this is the no nonsense workhorse that works efficiently and dependably while maintaining the highest possible accuracy.
Everything you need to perform survey campaigns Measure further and faster with the Trimble DR Plus EDM Complete field-to-office solution for quick data capture and processing Seamless integrated surveying with the Trimble GNSS receivers Optional Trimble Sentinel device tracking solution Compatible Software Choose from a variety of Trimble controllers operating the feature rich, intuitive Trimble Access field software. Streamlined workflows guide crews through common project types, helping to get the job done faster with less distractions. Trimble Access workflows can also be customized to fit your needs.
Back in the office, trust Trimble Business Center software to help you check, process and adjust your optical, leveling, and GNSS data in one software solution. No matter what Trimble instruments you use in the field, you can trust that Trimble Business Center office software will help you generate industry-leading deliverables Optional Instrument Tracking Trimble Sentinel puts an instrument tracking module, and powerful software right in the palm of your hand. When you want to track instruments, simply open the mobile app wherever you are, on any compatible device.
Detailed Photos
Product Parameters

Performance	Angle measurement		Sensor type		Absolute encoder with diametrical reading
			Accuracy		1″(0.3 mgon), 2″(0.6 mgon) or 5″(1.5 mgon)
			Angle display (least count)		0.1″(0.01 mgon)
	Automatic level compensator		Type		Centered dual-axis
			Accuracy		0.5″(0.15 mgon)
			Range		±5.4′(±100 mgon)
	Distance measurement		Accuracy(ISO)		Prism mode	Standard	1mm+2ppm(0.003ft+2ppm)
			Accuracy(RMSE)		Prism mode	Standard	2mm+2ppm(0.0065ft+2ppm)
						Tracking	4mm+2ppm(0.013ft+2ppm)
					DR mode	Standard	2mm+2ppm(0.0065ft+2ppm)
						Tracking	4mm+2ppm(0.013ft+2ppm)
						Extended range	10mm+2ppm(0.033ft+2ppm)

Certifications
Factory Photos
