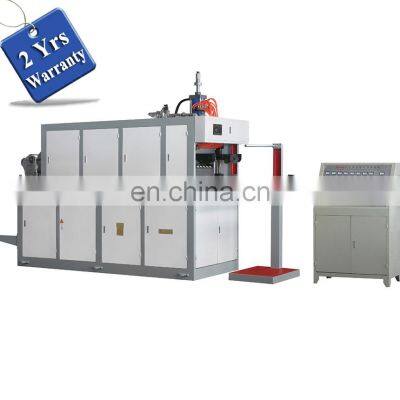

UD660 4 guide pillar Automatic small big takeaway resuable plastic cup container box Thermoforming making Machine
Videos
Video demonstration only for reference
Video : /watch?v=qm58ENlWl7k
Product Description
Description:
This automatic plastic thermoforming machine has been developed and manufactured according to plastic thermoforming technical process. It can produce the plastic items in just one pass through sheet feeding, heating, stretching, forming and side-cutting etc. There are variety of plastic materials that can be used in this machine such as PP,PE,PS and ABS etc, This equipment adopts microcomputer control with semiautomatic and automatic running modes. This machine has such advantages as wide-range usage, stable running and smooth operation, high rate of finished products and law noise etc.
Features:
This machine is mainly used for producing disposable plastic vessels, such as tea cup, milk cup, jelly cup, instant noodles bowl and other plastic products etc.
Parameters:
1,Max forming area:430×750mm
| 2,Max forming depth:150mm
|
3,Max sheet width: 540-750mm
| 4,Sheet thickness: 0.3-2mm
|
5,Max diameter of sheet roll: 750mm
| 6,Air pressure:0.7Mpa
|
7,Water consumption:35-40 Liters/min
| 8,Air consumption: 2500 -3500Liters/min
|
9,Manufacturing speed:
20-30mould/min
| 10,Power:380V, 3Phases
|
11,Heating power: 64kw
| 12,Main motor power: 5.5kw
|
13,Feeding motor power:2.2kw
| 14,Rewinding motor power:0.55kw
|
15,Weight:7000kg
| 16,Main machine(L×W×H):3100*1500*2300(mm)
|
Detailed Images
Our Services
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: Detailed size of your finished products in Max and Min?
B: Paper thickness in GSM
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
