Basic Info.
Carrying Capacity
Special Weight Level
Feature
Antiseptic, Insulating, Explosion-Proof
Certification
GS, CE, RoHS, ISO 9001
Standard
National Standards, Nonstandard
Model Number
Isyj Series Recovery Winch
Third Party Inspection
Available
Clutch
Manual or Hydraulic
Place of Origin
Zhejiang, China (Mainland)
Packaging Details
Standard Seaworthy Packing
Transport Package
Standard Seaworthy Packing
Production Capacity
150 Piece/Pieces Per Month
Product Description
Product Description

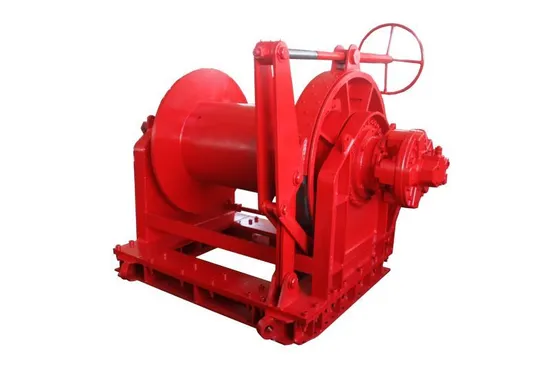

INI 150kN 15 ton electric mooring winch Product Structure
IDJ series electric mooring winch consists of electric motor with brake, planetary gearbox, drum , and frame. The customer only have to prepare electric box for winch performance.
Main Features
1. tailored solutionsto meet customer's specific needs.
2. Wide line pull range up to 60 ton
3. compact design & high reliability
4. easy to install
5. high starting& working efficiency
6. Reliable operation with little noise
7. Minimum maintenance relieves your anxiety
Application
They can be used to pull salvage vehicles, cross country vehicles, heavy trucks and bulldozers which are damaged or stuck in mud and they can be used for self recovery. Outline drawing of 30 ton hydraulic recovery winch/truck winch Specification (can be revised to meet customer's specific needs.)
Features 1 Heavy duty high torque hydraulic motor. 2 Extremely watertight with good quality internal seal. 3 Free spooling clutch-Rotation (normal manual clutch). 4 Compact structure, easy for mounting by two angle bar. 5 Fast line speed provide high efficiency for recovery 6 With cable tensioner 7 Integrated mechanical brake. 8 Winch can be mounted on wrecker, recovery truck, or other vehicles Performance
| Rated line pull (1st layer) | KN / kgs / lbs | 39/ 4000 / 9000 |
| Motor displacement | ml/rev | 80 |
| Oil flow | L/min | 15-60 |
| Oil pressure | MPa | 14 |
| Gear ratio | | 23:1 |
| Wire rope (diameter x length) | | Φ11mm x 25metre |
| Drum dimensions (diameter x length) | mm | Φ88 xΦ192 x 200 |
| Mounting dimension and bolts | | 300mm x 280mm 8-M12 |
| Overall dimension | mm | 516(524) x 316(376) x 237 |
| Net weight (with wire rope and hook) | kg | 48 |
Line pull, oil pressure and oil flow, line speed
| Line pull (KN) | Oil pressure (Mpa) | Oil flow (L/min) | Speed (m/min) |
| 0 | 3.5 | 15 | 2.5 |
| 27 | 8.5 | 25 | 4.0 |
| 36 | 11.0 | 40 | 6.5 |
| 39 | 14.0 | 50 | 8.0 |
| 49 | 15.0 | 60 | 9.5 |
Layer of calbe, line pull per layer, speed and wire rope capacity
| Layer of cable | Line pull (KN) | Speed (m/min) | Wire rope capacity |
| 1 | 39 | 9.5 | 5 |
| 2 | 34 | 11.8 | 12 |
| 3 | 28 | 13.9 | 19 |
| 4 | 25 | 16.0 | 25 |
Certification
>>
