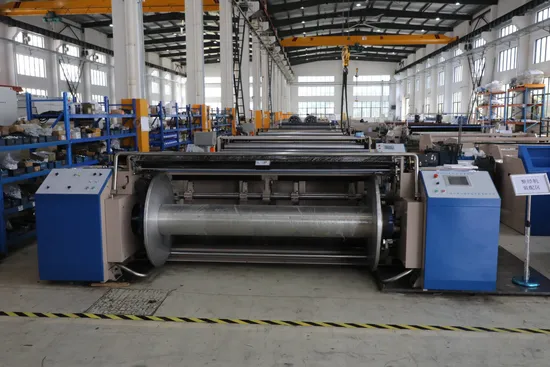

Advanced High-Precision Warping Machine for Various Materials

Product Description

Product Description
This series of machines is suitable for various raw materials such as chemical fiber flaments, elastic filaments, composite flaments.etc.After multiple creels are evenly aranged by the reed, they are wound into warp shafts; The densiy of the warp shaft is uniformand fat, with the advantages of constant tension and high warping speed. it is a preparation equipment for the sizing machine orthe beaming machine.
Important parts
Creel Part
*According to customer needs, it can be made into fixed, flipped, or wheeled types.
*According to customer's site space, it can be made into two rows, three rows, four rows, sxrows and other threading fomms.
*Equipped with contact wire breaking stop device.
*Equipped with the six-ring tensioner (other forms of tensioner can be selected).
*Equipped with electrostatic elimination device.
Tension Frame Part
The clamping tension control method does not cause damage to the thread by sliding betweenthe thread and the rollers during operation, and high quality warp beams can be obtained for awide variety of thread types. In the event of a stoppage, the clamping rollers are disengagedquickly, so no damage to the yam is caused. Positive tension control of the winding tension bytension feedback from the tension frame keeps the tension constant.

Product Parameters
Warping machine

Top speed		700m/s
The Width of Take-up Working		1800mm	2000mm	2200mm	2400mm	2800mm
The Most Root Number of Warping		2000	2200	2400	2800	3600
Motor drive		7.5kw		11kw		15kw
Tension frame	Power	2.2kw		3.7kw		5.5kw
	Tension Control Rang	-150~+250N
	Tension Control Method	Clamping Tension Control
Control Scope of Winding Tension		40N~750n

Loading and Unloading System of Warp Shaft		Pneumatic device loading and unloading
Diameter of Coiling Plasma Shaft		ø800mm~ø1000mm
Display System		Touch-operated Displays
Oiling System		The Roller-sticker Oiling (Waxing) Method
Auxiliary equipment prepared by the user	Minimum air pressure	0.65Mpa		0.7Mpa		0.75Mpa
	Electrical equipment capacity	15KVA		20KVA		30kva

Creel part

Style	Fliped Type			Wheeled Type
Spindle Distance(mm)	270	400	420~470	400	420~470
Max. Bobbin Weight (Max)	6	14	20	14	20
Number of Columns per Frame	5	5	3	4

FAQ
Q: What products does your textile machinery equipment company offer?
A: Our company offers a wide range of textile machinery and equipment, including warping machines, sizing machines,beaming machines, and more.
Q: Can your company provide customized solutions for textile production lines?
A: Yes, we have a team of experienced engineers and technicians who can provide customized solutions for textile production lines to meet the specific needs of our customers.
Q: Do you offer installation and training services for your textile machinery equipment?
A: Yes, we provide installation and training services for all of our textile machinery equipment to ensure that our customers can operate the equipment effectively and efficiently.
Q: What is the warranty for your textile machinery equipment?
A: Our textile machinery equipment comes with a standard warranty, and we also offer extended warranty options for our customers' peace of mind.
Q: Can I get technical support and spare parts for your textile machinery equipment?
A: Yes, we have a dedicated team to provide technical support and offer spare parts for all of our textile machinery equipment to ensure the smooth operation of our customers' production lines.
Q: How can I get a quote for your textile machinery equipment?
A: You can contact our sales team for a quote based on your specific requirements, and we will work with you to provide the best solution at a competitive price.
Q: Does your company have a global presence and can you provide international shipping?
A: Yes, we have a global presence and can provide international shipping for our textile machinery equipment to serve customers around the world.
Q: What is the lead time for delivery of your textile machinery equipment?
A: The lead time for delivery of our textile machinery equipment may vary depending on the specific products and quantities ordered, but we strive to ensure timely delivery to meet our customers' production needs.
Q: How can I learn more about your company and your textile machinery equipment?
A: You can visit our website for more information about our company and our textile machinery equipment, and you can also contact us directly for any inquiries or assistance.

---
