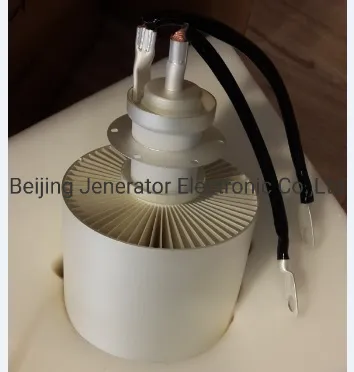

High-Performance Hf Valve Itl5-1 Electron Tube for Dielectric Heating Solutions

Product Description

Triode ITL5-1 is a forced air cooled, ceramic-metal medium-mu amplifier factor power triode containing a thoriated tungsten carbide cathode and designed for mainly used in industrial heating service and to be operated in CW or pulse modes. The output power will be up to 13KW. The max. working frequency is 150MHz. The anode dissipation is 5kW max.
GENERAL CHARACTERISTICS

Filament Voltage		6.3 V
Filament Current		63 A
Appr. Amplification		20
Interelectrode Capacitance	Grid Plate	16 pF
	Grid Cathode	21 pF
	Cathode Plate	0.6 pF
Cooling		Anode Forced
Air Maximum temperature at any point on tube envelope		220ºC

Machinery

Operation Position	Vertical, base up or down
Weight	2.9 kg
Maximum Height	250 mm
Maximum Diameter	123 mm

MAXIMUM RATING

Plate Voltage	7.5 kV
Plate Current	2.5 A
Grid Dissipation	0.2 kW
Anode Dissipation	5 kW

4CX150F 4CX250B/FG 4CX300A 4CX350A/F
4CX1000A 4CX1500A/B 4CX3000A 4CX5000A
4CX10000D 4CX15000A 4CPX150K 6T51 7T62R
E3062 7T69RB 7T84RB 7T85RB 8T25RA 8T85RB
8T87RB 3CX800A7 3CX1500A7 3CX2500A3/F3/H3
3CX3000A1/A7/F1/F7 3CX4500F3(YU-108)
3CX6000A7(YU-148) 3CX10000A3/A7/H3
3CX15000A3/A7/H3 3CX20000H3 3CW30000H3
3CW40000H3 3CW45000H3
6T51 7T62R(E3062C) 8T25RA8T85RB 8T87RB
7T69RB 7T84RB 7T85RB 3CX800A7 3CX1500A7
3CX2500A3/F3/H33CX3000A3/F7/A7 3CX4500/F3
YU-108 3CX6000A7(YU-148) 3CX10000A3/F3/H3
3CX15000A3/F3/H3 3CX20000H3 3CW30000H3
33CW40000H3 3CX45000H3 BW1184J2 BW1185J2
BW1608F RS3060CJ RS3500C TH382 TH347 TH5-6
ITL5-1 TH6-3A
Microwave CW Magnetrons:
2450MHz 850W 950W 1000W 5KW 10KW,
915MHZ 5KW 30Kw,
At the same time, please be kindly to provide us your type needed, and then we can give you our similar products to replace it!

---
