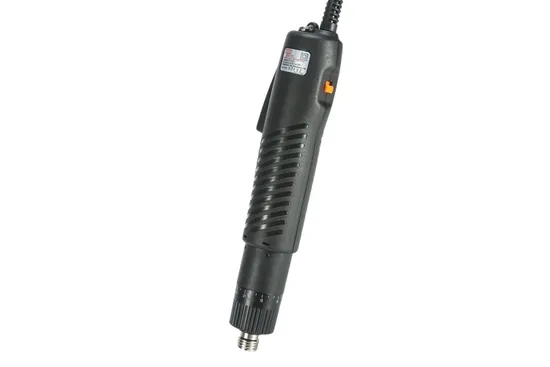

Bsd-102L Screwdriver Low Torque Compact DC Semi-Automatic Screwdriver for Production Line

US$34.45-60.54 10 Sets (MOQ)

Basic Info.

Model NO.

BSD-102

Voltage

DC Low Voltage

Power Supply Voltage

220V

Automation

Semiautomatic

Power Source

Electricity

Function

Professional, Household

Condition

New

Customized

Non-Customized

Input Voltage

DC 36V

Torque (N.M)

0.4~3.5

Power Consumption

45W

Speed (r.p.m)

1000

Applicable Screw Size

2.6~5.0 mm

Starting Method

Trigger Start

Transport Package

33.5*11*9cm

Specification

DC TYPE ELECTRIC SCREWDRIVER WITH POWER SUPPLY

Trademark

BSD

Origin

China

HS Code

84672990

Production Capacity

50000 Piece/Year

Product Description

Features
Economic Value Models. High stability, NOT impact of Voltage changes , free from fatigue under long-time using. Small, light body , specially design for the precise needingof tiny screws. Torque accuracy and stability, rotation speed selected by switches Hi & Lo. applied to Small appliances,Electronics,Toys,Processing and assembly industry. Made in China. Specifications

No	Item	Data
1	Torque	0.4~3.5 N.m	4.08~35.71 kgf.cm	3.54~30.98 Lbf.in
2	Unloaded Rotation Speed(r.p.m)	1000
3	Torque Adjustment	Stepless
4	Screw Size Dia(mm)	2.6~5.0(Machine Screw)	2.6~4.0(Tapping Screw)
5	Power Consumption	45W
6	Weight(g)	445
7	Length(mm)	230
8	Repeatable Torque Accuracy (%)	±5%

Applicable Bit Type

External Dimention

Torque Range Reference Chart

Product Configuration1
Successful Project

Company Photo
