High Palletizing Robot Shandong Province Industrial Robot

Product Description

Product application
High palletizing machine, as modern industrial production needs to improve in all aspects of production capacity, cost control, so promote the rapid development of production and packaging automation, high palletizing machine came into being, equipment for packaging scale behind the packaging and shipping, palletizing machine can be configured before the sealing machine, packing (bag) machine, automatic baling machine and other equipment to meet the production and packaging needs The emergence of palletizing machine, improve the production capacity of enterprises, reduce the cost, in the production and palletizing has an irreplaceable role.
How it works

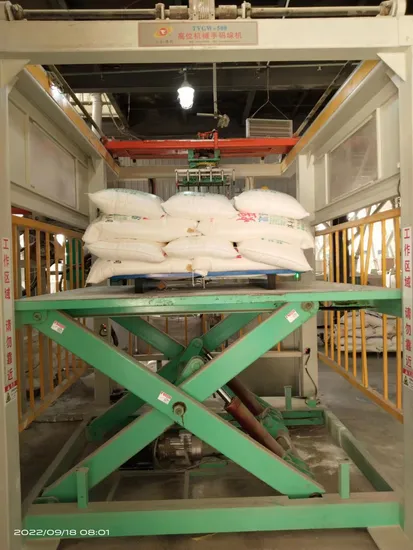

The qualified packaging bags are sent to the levelling machine through the slope conveyor to make the bag shape smooth. The bags arrive at the grasping roller table. After the manipulator detects the bags on the grasping roller table, it grabs the bags for turning and stacking, and the bags are placed according to the set running track to complete the palletizing process.
SCOPE of application
Widely used in fertilizer, oil meal, feed, rice, flour, starch, salt, medicine, beverage, daily chemical, food and other production enterprises finished warehouse bags and other objects palletizing.

Model number	TYGW-500
Palletizing speed	500 bags/hour
Main engine size	L3200mm×W2200mm×H3000mm
Equipment power	7.5KW
Supply power	3*AC380+N
Palletizing height	600-1600mm
Number of palletizing layers	Floors 1-10
Palletizing station	3-12 (Number of bags per layer)
Gas supply pressure	0.6-0.8Mpa
Equipment weight	300Kg

---
