US$0.08
100,000-4,999,999 watt
Basic Info.

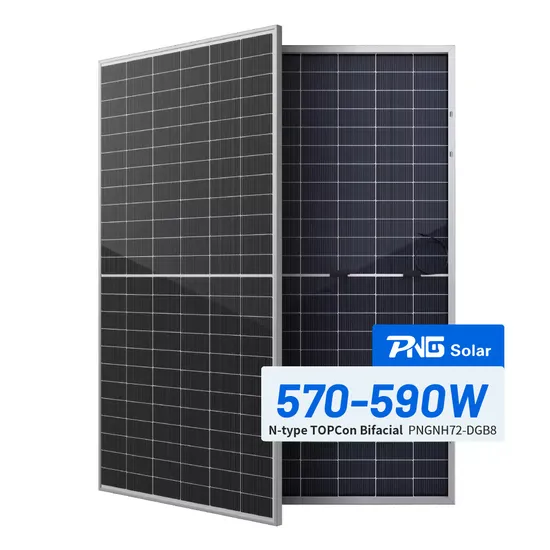

Model NO.
PNGNH72-B8 580W
Application
Residential, Industrial,Commercial
Certification
ISO, CE, TUV
Material
Monocrystalline Silicon
Glass
3.2mm Coated Glass Tempered Glass
Frame
Anodized Aluminium Alloy
Front Glass
3.2mm High Transmission Tempered Glass
Transport Package
31PCS One Pallet
Specification
2278*1134*35mm
Production Capacity
800mwatt/Years
Packaging & Delivery
Package Size
224.00cm * 114.00cm * 40.00cm
Package Gross Weight
1440.000kg
Product Description
Product Description
ELECTRICAL DATA(STC)
| Module Type | PNGNH72-B8560 | PNGNH72-B8565 | PNGNH72-B8570 | PNGNH72-B8 575 | PNGNH72-B8 580 |
| Rated output (Pmp/Wp) | 560W | 565W | 570W | 575W | 580W |
| Short Circuit Current(Isc) | 13.9 | 13.96 | 14.02 | 14.08 | 14.14 |
| Open Circuit Voltage(Voc) | 50.6 | 50.8 | 51.0 | 51.2 | 51.4 |
| Maximum Power Current(Impp) | 13.8 | 13.14 | 13.19 | 13.25 | 13.3 |
| Maximum Power Voltage(Vmpp) | 42.8 | 43.0 | 43.2 | 43.4 | 43.6 |
| Module efficiency(%) | 21.67% | 21.86% | 22.06% | 22.25% | 22.44% |
| Standard Test Condition(STC) | Irradiance 1000W/m², Cell Tempera ture 25ºC, AM1.5 |
Product Process
Strictly QC System
Hefei Pinergy Solar Technology Co.,Ltd is a professional and fast growing company.The business covers the R&D,production and sales of PV modules.Power station and PV system products, power generation and operation and maintenance services,etc.The company is located in Hefei City, Anhui Province, which is one of the main production bases of the photovoltaic industry in the world.We are world-renowned manufacturer and supplier of solar cells, solar PV modules and solar systems. Covering an area of 46000 square meters,we have more than 200 employees now,which makes annual production capacity of 800MW and 90% were exported all over the world. The advanced production system and excellent quality control have enabled us to win the trust and support of our customers.We have got certificates of TUV,CE,etc.
At present, PINERGY has established a global sales network covering 70 countries/regions.Mainly covering Europe, Asia and South America, customers all over the world.
Project Cases
Certifications
>>
