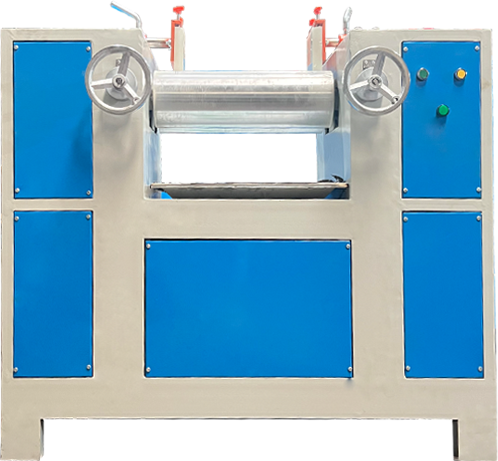

| Model | YX-SL160 |
| Diameter of Roll(mm) | 155mm |
| Length of Roll(mm) | 500mm |
| Maximum roll distance(mm) | 10mm |
| Single feed | 1-5KG |
| Power | 2.2KW |
| Rotation Speed of Front Roll(rpm) | 18r/min |
| Roll speed pattern | Constant speed (adjustable speed/double adjustable speed) |
| Bearing situation | Insert bearing |
| Reducer casing | planet-gear speed reducer |
| Voltage | 380V |
| Weight | ~500KG |
| Dimension(L*W*H) | 1250*800*1150mm |
