Manufacturer Wholesale Top Grade Hospital ICU Clinic Surgical Operation Room Anesthesia Machine

Product Description

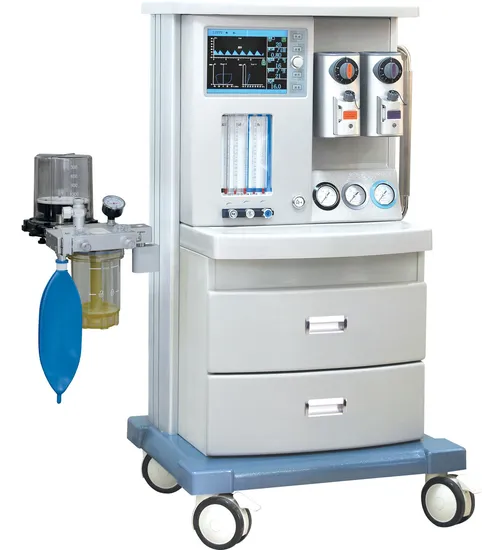

Nanjing Puao JINLING 850 top end hospital ICU clinic surgical operation room Anesthesia Machine
Common Features Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
Anesthesia Ventilator: Built-in color TFT display, able-display Pressure-Time, Frequency-Time, Pressure-Volume and Frequency-Volume, displayed waveforms can be cycled instantly with a touch of a button
Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
Equipped with electronic pressure differential flow sensor, imported respiratory control valve, stable and reliable, rapid response time
High precision five tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
Alarms: Audible and/or visual alarms for tidal volume, airway pressure, oxygen concentration, asphyxia, power failure, oxygen failure and other alarms, also features a alarm query function
Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality
Advanced and stable Adjustable Pressure Limiting (APL) valve, suitable for low and ultra low flow anesthesia
Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C
Multi-parameter Patient Monitor: Optional
Specifications

Model	JINLING 850
Display	10.4 inch TFT display
Flowmeter Range	O2: 0.1-10L/min,N2O: 0.1-10L/min,Air: 0.1-10L/min
Ventilation Mode	IPPV, SIPPV, PCV, IMV, SIMV, MANUAL
Back-up Power Supply	At least 4 hour
Tidal Volume	Adjustable range: 0-1500ml
Respiratory Frequency	0-100bpm
SIMV Frequency	1-20bpm
Oxygen Flush	25-75L/min
Inspiratory/Expiratory (I:E) Ratio	8:1-1:10
Inspiratory Pressure Trigger	-10~20cmH2O
PEEP	0-20cmH2O
SIGH	1 sigh breath in every 70-120 breaths
Inspiratory Plateau	0-1 second
Inhaled Oxygen Concentration Monitor	21-100%
Vaporizer Concentration Ranges	0-5%
Vaporizer Slots	Double PA-I type slots.Enflurane, Isoflurane or Sevoflurane (Halothane optional).
Gas Supply Pressure	O2: 0.32MPa~0.6MPa; N2O: 0.32MPa~0.6MPa; AIR: 0.32MPa~0.6MPa

Sales Director: Justin Zhang
Nanjing Puao Medical Equipment Co., Ltd.
Add.: No.9,Gaoke First Road,National Hi-Tech Zone, Nanjing Jiangsu,China.

---
