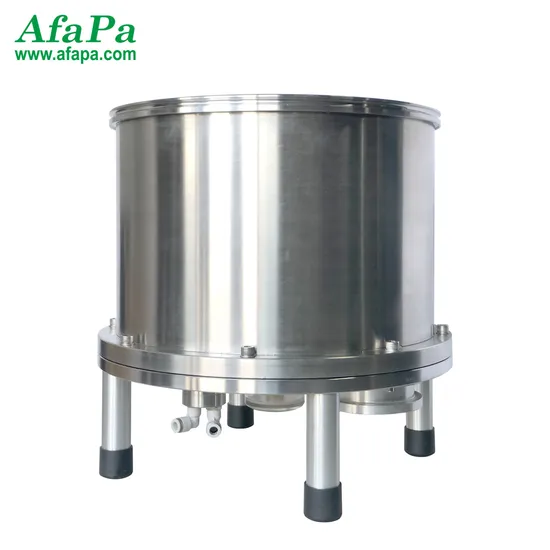

3600L/S Water Cooled High Vacuum Molecular Vacuum Pump

Product Description

Product Description
FF Turbo Molecular Vacuum Pump:
Molecular pump is a high vacuum to obtain equipment (vacuum can be as high as 10-8Pa), which has a high degree of vacuum, pumping speed, oil-free etc. When the molecular pump is running, the back pump must be operated under high vacuum and dedicated power supply.
Working Principle:
Molecular vacuum pump is a kind of pumping air equipment, which consist of ultra-high-speed rotating rotor blades and stationary blades, under the appropriate blade angle, the gas molecules carried on the surface of the blade rigid body move and migrate in a certain direction, so as to achieve the purpose and effect of pumping.
Water Cooled Unit & Rotors:
Controller:
Product Parameters

Model	FF160/600		FF200/1200		FF250/1600		FF400/3600
Pumping Speed(L/S)	600		1200		1600		3600
Compressed Rate(N2)	109		109		109		108
Compressed Rate(H2)	8x103		1x104		1x104		5x102
Max Vacuum(Pa)	6x10-8	3x10-7	8x10-8	2x10-7	7x10-8	5x10-7	6x10-7
Inlet Flange	CF160	ISOK160	CF200	ISOK200	CF250	ISOK250	ISOK400
Outlet Flange	KF40		KF40		KF50		ISOK100
Starting Time(Min)	About 5		About 5		About 7		About 11
Motor Speed(RPM)	24000		24000		24000		13500
Backing Pump(L/S)	4~8		8~15		15		25
Installating Method	Vertical		Vertical		Vertical		Vertical
Cooling Method	Air Cooled or Water Cooled				Water Cooled		Water Cooled
Cooling Water Temp(ºC)	25		25		25		25
Environmental Temp(ºC)	Air Cooled: 32 / Water Cooled: 40				Water Cooled: 40
Pump Body Heating Temp(ºC)	120		120		120		120
Weight(Kg)	25		30		35		100
Dimension(DxH, MM)	260x400		290x400		320x400		430x490
Remark: 1L/S=3.6m3/h,1L/S=2.119CFM. 1Pa=0.01mbar,1Pa=0.001Kpa, 1Pa=0.0075Torr, 1Pa=0.000145PSI,1Pa=0.00001Bar.

Performance Curves:
Our Advantages
1. Ultra-high vacuum up to 10-8.
2. Pumping speed up to 3600L/S.
3. Long life can be long continuous operation.
4. Clean vacuum is available.
5. High strength materials.
6. High performance ceramic bearings.
Exhibition
FAQ Q1: If I want to inquiry, what can I need to offer?
A1: Please tell us your Working Vacuum Degree(Pa,mbar or torr), Flowrate(L/S or M3/H) and Usage.
Q2: Do you have MOQ?
A2: 1Pcs is ok,if you have more quantity, the price will be cut down.
Q3: How long to delivery?
A3: We need about 4-5 weeks to produce,then extra need about 5-7 days to arrange domestic delivery and port clearence.
Q4: What is your payment term?
A4: 50% for prepayment, then the balance should paid before delivery, by TT. Q5: How long for the warranty? A5: 1 year for whole machine, the effective date of warranty should be counted from one month the goods arrived in client's site. If the pump go wrong, the client can choose back the pump to factory repair,or we offer remote technical support.

---
