Factory Price 2300W Slag Removal Machine Laser Cutter Table Slat Slag Cleaner Removal Tool

Product Description

Product Description
slag remover
Fast speed: The speed is several times faster than manual cleaning.
Safe under-stage operation: the equipment has a long handle and good operation performance, and the cleaning work can be completed under a single person.
High flexibility: flexible and convenient operation, only need to lift the extension rod for line change, no need for workers to go on stage to carry and change lines.
Convenient to carry: the whole machine is small in size, light in weight, and has walking wheels, which is convenient to carry.
Reduce workload: Compared with time-consuming and laborious manual cleaning, it can reduce the workload by 40%.
Cost reduction: Compared with the cost of regular replacement of the sword fence, it can save up to 75% of the cost through multiple cleanings.
Detailed Photos

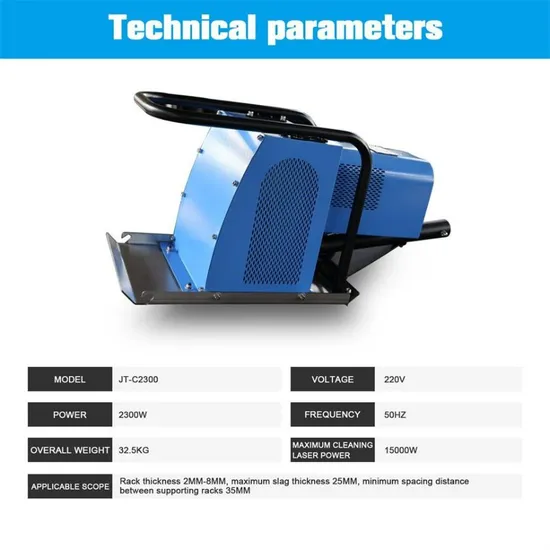

Model	JT-C2300
Voltage	220v
Frequency	50HZ
Rated power consumption	2300w
Suitable for maximum laser power	15000w
Suitable for the thickness of the sword gate	3-5mm
Suitable for the minimum spacing of rapier racks	30mm
Suitable for maximum slag width	25mm

Hot Product

1500W Air-Cooling Portable Fiber Laser Welding Machine
Model	DHH-1500
Laser power	1500
Working mode	Continuous or modulate
Laser wavelength	1080NM
Beam quality	M2<1.2
Standard output laser power	±2%
Power supply	AC220V±10%16A 50/60Hz
Power	≤4KW
Cooling system	air-cooled
Fiber length	10M Customizable
Temperature range of working environment	5~38 ºC
Humidity range of working environment	< 70% No condensation
Welding thickness range	MAX4mm
Applicable materials	Carbon steel,stainless steel,galvanized sheet, etc
Weld requirements	<0.2mm
Welding speed	0~120 mm/s
equipment dimensions and weight	65*35*60CM 48KG

Mini Portable Fiber Laser Welding Machine
Model	DHH1000	DHH1500	DHH2000
Laser Power	1000W	1500W	2000W
Stainless Steel Welding Penetration	2.68mm	3.59mm	4.57mm
Carbon Steel Welding Penetration	2.06mm	2.77mm	3.59mm
Welding Penetration Of Aluminum Alloy	2.00mm	3.00mm	4.00mm
Focus Spot Size	0.2-5.0mm	0.2-5.0mm	0.2-5.0mm
Wire Feed Specification	0.8/1.0/1.2mm	0.8/1.0/1.2/1.6mm	0.8/1.0/1.2/1.6mm
Cooling Method	Water Cooling	Water Cooling	Water Cooling
Power Supply	220V/50-60HZ	220V/50-60HZ	220V/50-60HZ
Total Power	4.5KW	6.5KW	8.5KW
Overall Size	109x45x79cm	109x45x79cm	109x45x79cm

Water-cooling Handheld Fiber Laser Welding Machine
Model	DHH-3000
Maximum laser power	3000W
Melting depth (stainless steel, welding speed 1.5 m/min)	6.26mm
Melting depth (carbon steel, welding speed 1.5 m/min)	5.79mm
Melting depth (aluminum alloy, welding speed 1.5 m/min)	5.2mm
Automatic wire feeding	0.8/1.0/1.2/1.6mm
Power consumption of the whole machine	10KW
Cooling method	water cooling
Dimension	120*90*120cm
Weight	300KG

Robotic Laser Welding Machine
Model	DHH-1500	DHH-2000	DHH-3000
Laser Power	1500W	2000W	3000W
Laser wavelength	1080nm	1080nm	1080nm
Laser frequency	50-5000HZ	50-5000HZ	50-5000HZ
Power adjustment range	10-100%	10-100%	10-100%
Welding depth (stainless steel)	2.68mm	4.57mm	5.5mm
Welding Depth (Carbon Steel)	2.06mm	4.59mm	5.0mm
Welding depth (aluminum alloy)	2.0mm	3.0mm	5.0mm
Power supply	220V/50HZ	220V/50HZ	380V/50HZ

Jewelry Laser Spot Welding Machine
Model	DHH-100	DHH-150
Laser Power	100W	150W
Equipment style	Desktop model laser spot welder	Desktop model laser spot welder
Laser Wavelength	YAG /1064nm	YAG /1064nm
Pulse Width	≤15ms	≤15ms
Pulse Frequency	≤100Hz	≤100Hz
Welding Spot Diameter	0.2-2mm	0.2-2mm
Filler Wire Diameter	0.1~0.5mm	0.1~0.5mm
Power Consumption	2KW-7A	3KW-10A
Power Supply	AC220V±5% single phase	AC220V±5% single phase
Operation Interface	LED touch control interface,Chinese/English available	LED touch control interface,Chinese/English available
Locating System	CCD /Coaxial CCD for microscope(10X)	CCD /Coaxial CCD for microscope(10X)
Cooling Type	water cooling	water cooling
Machine Dimensions	790*430*590mm	790*430*590mm
Machine Net weight	65KG	65KG
Work Environment	Temperature 0~35ºC, Humidity 5~85%	Temperature 0~35ºC, Humidity 5~85%

1000W/1500W/2000W/3000W Cw Laser Cleaning Machine
Type	DCL-1000	DCL-1500	DCL-2000	DCL-3000
Laser source	CW Fiber	CW Fiber	CW Fiber	CW Fiber
Laser Power	1000W	1500W	2000W	3000W
Fiber cable	10 M	10 M	10 M	20 M
Wavelength	1070nm	1070nm	1070nm	1070nm
Clean speed	≤20M²/Hour	≤30M²/Hour	≤50M²/Hour	≤70M²/Hour
Beam width	10-200mm	10-200mm	10-200mm	10-200mm
Scann speed	0-7000mm/s	0-7000mm/s	0-7000mm/s	0-7000mm/s
Cooling	Water cooling	Water cooling	Water cooling	Water cooling
Voltage	Single Phase 220/110V, 50/60HZ	Single Phase 220/110V, 50/60HZ	Three Phase 380/220V, 50/60HZ	Three Phase 380/220V, 50/60HZ

Pulsed Laser Cleaning Machine
Model	DPL-50W	DPL-100W	DPL-200W	DPL-300W
Laser source	Fiber	Fiber	Fiber	Fiber
Laser Power	50W	100W	200W	300W
Fiber cable	3M	5M	5M	5-8M
Pulse Energy	1.5 mJ	1.5 mJ	2mJ	2mJ
Wavelength	1060nm	1060nm	1060nm	1060nm
Frequency	1-2000KHz	1-2000KHz	1-2000KHz	1-2000KHz
Clean speed	≤5 M²/Hour	≤10 M²/Hour	≤20 M²/Hour	≤30 M²/Hour
Scann speed	0-7000mm/s	0-7000mm/s	0-7000mm/s	0-7000mm/s
Cooling	Air cooling	Air cooling	Air cooling	Air cooling
Dimension	265*210*118	339*350*123	268*445*135	268*445*135
Weight	6.8Kg	8.5Kg	12.5Kg	15Kg
Beam width	10-70mm	10-70mm	10-70mm	10-70mm
Optional	Manual	Manual	Manual	Manual
Temperature	5-40 °C	5-40 °C	5-40 °C	5-40 °C
Voltage	220/110V, 50/60HZ	220/110V, 50/60HZ	220/110V, 50/60HZ	220/110V, 50/60HZ

Power regulation range	500W/1000W
Power regulation range	10%~100%
Central wavelength	1064 nm
Polarization direction	arbitrarily
Beam quality factor	BPP=9/BPP=3.5
Laser line-width	Length: 5mm ~ 100mm, adjustable Width: 5mm ~ 100 mm, adjustable
Scanning images	Support linear, 2D, circular, rectangular progressive scanning, rectangular ring, triangle, spiral
Laser pulse frequency	5kHz ~ 200kHz adjustable
Maximum single pulse energy	15mJ
Fiber length	10m
Minimum bending radius of optical fiber	200mm
Stability of laser output	<5%
Cooling mode	water cooling
Polarization direction	arbitrarily
Guided laser function	have
Anti hyper reflexes	have
Field mirror model	F254
Operation type	Operation type
Supply voltage	AC 220±10%V
Mains frequency	50/60 Hz
Operating temperature range	0ºC ~ 40ºC
Storage temperature range	-10ºC ~ 60ºC

slag remover
Fast speed: The speed is several times faster than manual cleaning.
Safe under-stage operation: the equipment has a long handle and good operation performance, and the cleaning work can be completed under a single person.
High flexibility: flexible and convenient operation, only need to lift the extension rod for line change, no need for workers to go on stage to carry and change lines.
Convenient to carry: the whole machine is small in size, light in weight, and has walking wheels, which is convenient to carry.
Reduce workload: Compared with time-consuming and laborious manual cleaning, it can reduce the workload by 40%.
Cost reduction: Compared with the cost of regular replacement of the sword fence, it can save up to 75% of the cost through multiple cleanings.
Certifications
Packaging & Shipping

Company Profile
After Sales Service
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according toquantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge
Q: who are we?
A: We are based in Hubei, China, start from 2018,sell to North America(8.00%),South America(8.00%),South Asia(7.00%),Eastern Asia(7.00%),Oceania(7.00%),Western Europe(7.00%),Southern Europe(7.00%),Central America(7.00%),Northern Europe(7.00%),Africa(7.00%),Eastern Europe(7.00%),Domestic Market(7.00%),Mid East(7.00%),Southeast Asia(7.00%). There are total about 11-50 people in our office.
Q: how can we guarantee quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q: what can you buy from us?
A: Laser Cutting Machine, Laser Welding Machine, Laser Cleaning Machine , Laser Source, Laser Machine Consumables
Q: why should you buy from us not from other suppliers?
A: We have 20 years experience in laser cutting business and sheet metal fabrication industry, sourcing the best value chain of laser cutting machine and sheet metal fabrication machineries for the global fabricators is our target, professional and sincere.
Q: what services can we provide?
A: Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,ChineseDemark (Wuhan) Technology Co.,ltd has focused on laser technology for over 20 years in China, including laser marking, laser engraving, laser welding and laser cutting applications. We started as a small operation, but now have become one of the leading suppliers in the laser industry in China.Today, Demark (Wuhan) Technology Co.,ltd has been one of the top manufacturers of laser machine and laser equipment parts, such as: laser marking machine, laser engraving machine, laser welding machine and laser cutting machine.

---
