Fixed Beam and Fixed Column Gantry Machining Center Machine Tool

Product Description

Let GOODA help you keeping quality at 100%!
In GOODA,the future of processing
Company profiles Duplex cnc milling machine ,made in china,gained 38 patent certifications
12 years experience, 3years guarantee.
high efficiency, high accuracy , high quality.
GooDa CNC series milling machine are your best choice!
Dongguan GooDa Machinery Manufacturing Co.,Ltd
Address: No.216,Huanchang North Road,Changping Town, Dongguang City, GD, China
Website: http://goodacnc.en.made-in-china.com
GooDa Machinery focuses on the field of CNC duplex milling machine, and has maintained rapid development since its establishment. Its independent brands: GooDa machinery,YaGoo machinery and JJR machinery have become the most influential brands in the industry. The design and positioning of the product is guided by the customer's needs of users in different scales and fields, and realize personalized customization, so as to create the highest economic benefits for customers.
Product DescriptionGOODA CNC Gantry Machining Center
MODLE : GDGM-2015NC
Machine technical specification

Model:GDGM-2015NC		Unit	Specification
Process Range	X axis travel	mm	2500
	Y axis travel	mm	1700
	Z axis travel	mm	800
	Spindle nose to worktable surface	mm	200~1000
	Distance between two columns	mm	1500
Worktable	Table Size	mm	2700×1300
	MAX Loading weight	kg	6500
	T-Slot (Number/Width/Gap)	-	7×22×170
Spindle	Spindle Speed	rpm	6000
	Spindle Taper	-	BT40
	Spindle Motor	KW	15/18.5
Speed	Rapid Moving (X/Y/Z)	m/min	24/24/12
	Rapid Feed (X/Y/Z)	m/min	10/10/10
Tool Magazine	Tool Magazine Number	pcs	24
	Tool MAX Diameter/length/weight	-	Æ112mm/350mm/15kg
	Tool MAX Diameter (Full/Empty)	mm	112/200
	Tool selection method	-	any/sequence
	Time (tool-tool)	S	1.8
Machine Accuracy	Positioning (X/Y/Z)	mm	0.02/0.02/0.015
	Re-Positioning (X/Y/Z)	mm	0.012/0.009/0.008
Others	Air source	L/min	280
	Air pressure	Bar	6~8
	Total electrical capacity	KVA	55
	Water tank capacity	L	400
	Machine size	mm	7000×3900×4500
	Machine weight	kg	24500
System	FANUC SYSTEM OR Mitsubishi controller	-	Optional

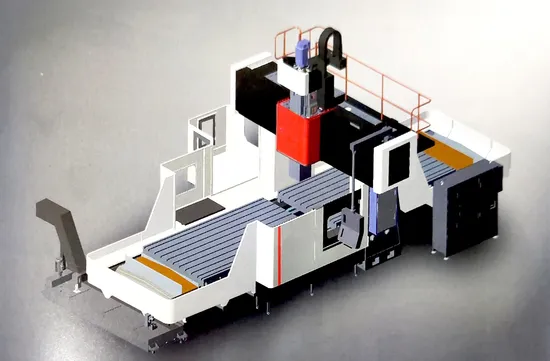

GDGM-2015NC is a fixed beam and fixed column gantry machining center machine tool. It is developed based on the most popular, advanced and flexible machine tool design concepts in the world. It is suitable for aerospace, shipbuilding, power generation, military industry, heavy machinery, locomotives, machine tools, and textile machinery. , Printing machinery, automotive covering molds and other industries of various large-scale workpiece machining equipment.
The Features The machine adopts the gantry structure of moving table. The bed is fixed, the worktable moves in the X direction on the bed; the ram moves in the Z direction on the sliding seat; the sliding seat and the ram move in the Y direction on the gantry beam; the X and Y axes adopt heavy-duty linear rails, Z The shaft is a plastic hard rail. The main shaft assembly is placed at the lower end of the ram; the whole machine has a reasonable layout, beautiful appearance and convenient operation.
Spindle box: We use high-speed BT50 spindle unit with center blowing.
Tool Magazine: We use disc magazine with high quality and stable functionality. (Optional)
Transmission: The three-axis motor and high-precision ball screw adopt a direct drive method. The ball screw is pre-tensioned and installed to improve transmission rigidity and positioning accuracy.
Specification
You can choose FANUC system or MITSUBISHI Controller as you like.
*Gooda will help you reduce setting time and reduce running cost,to increase efficiency.
{Workshop}
Main products:CNC duplex milling machine,CNC high speed sawing machine, CNC Vertical milling machine,CNC Gantry milling machine, CNC Machining Center, CNC three Axis Chamfering machine,CNC Planar Grinding machine,Plate flipping machine.The application scope of the products includes mold steel,moldbase, aluminum plate,die processing and other metal cutting.After years of research and development and innovation, the products are at the leading level in terms of processing accuracy,machine stabilitym,Ergonomic design and other technical performance. With the continuous improvement of market demand, GooDa has launched six side processing solutions, indirectly promoting the development of China's mold industry.
After years of unremitting efforts, the company has obtained dozens of patent technology and software coyright, and has successively passed the ISO 9001 quality management system certification of EU TUV certification body,EU CE product safety certification, intellectual property management system certification,national high-tech enterpise evaluation and other honors.In order to maintain the leading edge of product technology,the company has actively carried out school enterprise cooperation to continuously promote the development of the enterprise while recruiting excellent talents in the industry.
Benefiting from the company's innovation and R&D advantages,the company has developed rapidly in just a few years. The existing R&D and production sites have restricted the company's subsequent development, and the space for capacity improvement is limited. For the company's sustainable development in the future, in 2018, GooDa invested heavily in the construction of GooDa machinery's normal headquarters Indusrial Park to support the development of the company's high-end CNC machine tool equipment project, Greatly enhance the company's CNC inteligent equipment capacit.
{CERTIFICATE}
Manufacturer of CNC duplex milling machines and other series of professional CNC machine tools !!

{EXHIBITION }
Every feature,function and configuration of our machinery are made for our customer

FAQ: 1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI etc. It depends on your choice.
3.When is the delivery time?
Conventional Machines,We will delivery then within 30-45 working days after received your
deposit,if some special machines will be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
Packing: PE bag cover inside+ Plywood box + Steel beam frame.
5.How can I choose the most suitable machines ?
Please let us know your machining demand or machine size ,we can choose the best model
for you , or you can choose the exact model by yourself. You can also send us the products
drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
FOB, CFR,CIF or others terms are all acceptable.
7. What is your payment terms ?
Payment Terms : T/T 30% advance , 70% before shipment.

---
