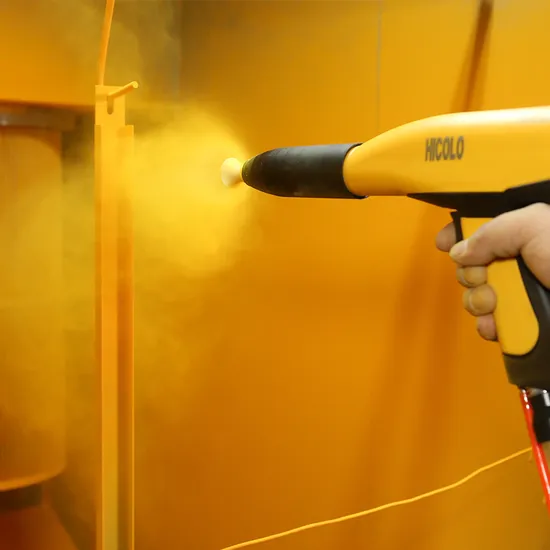

Electrostatic Powder Coating Spray Gun

Product Description

Manual Powder Coating Spray Gun Powder spray gun Match for all seris powder coating machines.
it only work with our colo brand machine.
with two set nozzle .round nozzle & flat nozzle. round nozzle suit for large and flat workpiece . flat nozzle suit for deep corner .
we can also provide extension tubes .suit for large and deep corner
Powder Gun Technical Data

Gun weight:	500G
Rated output voltage	24VDC
Input voltage	- 200kv
Maximum output current	180Ua(max)
Maximum output voltage	0-100KV ( adjustable)
Maximum powder injection	600g/min
Polarity	negative (-)

If you already have our powder coating machine and need buy spare parts for powder coating gon COLO-08.
please check the item NO and send us email.

COLO-08	complete gun	800108-1	spring
800101	cascade	800109	Trigger cover
JM800101	Cryptographic cascade	800110	Gun cable connector
800102	gun body	800111	Rinsing air connection
800103	threaded sleeve	800112	Clip ring
800104	trigger-complete	800113	Hose connection
800104-1	spring	800114-1	back cover (for 181s,191s)
800105	Micro Switch	800114-2	back cover
800106-16	deflector 16mm	800115	PCB for the back cover
800106-20	deflector 20mm	800116	lable for back cover
800106-24	deflector 24mm	800117	5m gun cable
800106-32	deflector 32mm	JM800118-4	4 pins gun cable connector
800107R	nozzle set - round jet	JM800118-5	5pins gun cable connector
800107R-1	electrode holder,round	800119-3	5pins gun cable connector
800107R-2	round jet nozzle	800119-4	5pins gun cable connector
800107F	Nozzle set -flat jet	800119-5	5pins gun cable connector
800107F-1	electrode holder,flat	800120	gun handle
800107F-2	flat jet nozzle	800121R-150	150mm extension
800108	Powder tube	800121R-250	250mm extension
800122	gun shell (without the cable and cascade)	800121R-350	350mm extension
800123	contact

Powder coating machine COLO-610
Electrostatic powder spray machine COLO-660
Powder coating application systems COLO-800D
NEW powder coating equipment COLO-191S
COLO-191
