Factory Direct Sales of Ensign Brand Extremely Cost-Effective 3.8t Internal Combustion Counterbalanced Forklift

Product Description

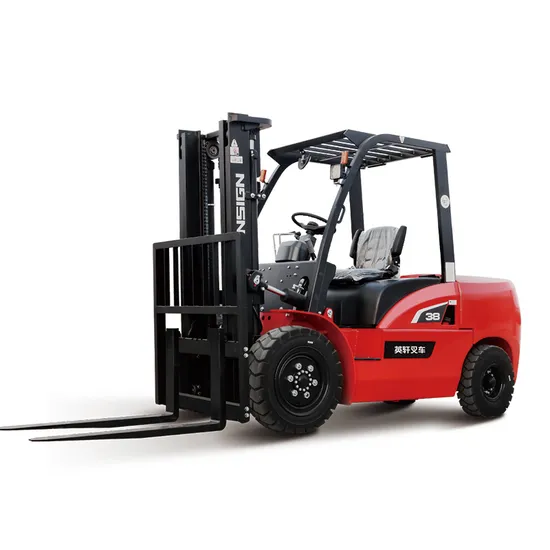

Ensign Four-Wheel Counterbalanced Internal Combustion Forklift G SERIES-CPCD38
Basic Technical Prameters

Model		CPC(D)38-G38
Power Type		diesel
Lift Capacity	(kg)	3800
Load Center Distance	(mm)	500
Battery (Voltage/Capacity)	(V/Ah)	12/80

Product Parameters

Max. Lift Height	(mm)	3000
Free Lift Height	(mm)	130
Mast Tilt Angle (front/rear)	(°)	6/12
Max. Lift Speed (full load/no load)	(mm/s)	420/440
Max. Lowering Speed (full load/no load)	(mm/s)	330/310
Max. Travelling Speed (full load/no load)	(km/h)	18.5/19
Min. Turning Radius	(mm)	2730
Gradeability (full load/no load)		15/20
Max. Traction Force	kN	23
Overall weight	(kg)	4850

Product Description
1. Adopt integral sheet metal structure machine cover, beautiful appearance, internal frame rib structure, high strength, reliable quality
2. Adopt full hydraulic steering system, steering torque is small, easy to operate
3. Adopt the new technology of wiring harness and waterproof connector, multi-way fuse arrangement, improve the safety and stability of the circuit system
4. Steering wheel, seat, instrument stand accord with ergonomic design, driver more comfortable operation
5. The use of large flow air filter, perfect combination with guosan engine, the vehicle high efficiency, strong power, low noise
6. Large capacity water tank is adopted to optimize the heat dissipation system, and the heat dissipation performance of the whole vehicle is greatly improved
7. Intuitive and simple instrument, easy to observe water temperature, oil, use time and other data
8. The machine has small vibration and low noise, which improves the operating comfort of the driver
9. Reasonable oil layout and pipeline design reduce oil pressure loss and prevent oil temperature from being too high
10. The opening Angle of engine cover can reach 80°, which is more convenient for maintenance
After-sales service After-sales service/warranty period: 18 months after bill of lading, 12 months after sale, 2000 working hours, whichever comes first
Professional after-sales staff to provide services for you
