US$1,000.00-3,000.00
|
1 sets
(MOQ)
|
Basic Info.
Model NO.
SF130/SF180/SF250/SF320/20B/30B/40B/50B/60B
Type
Multi-Use Grinding Machine
Controlling Mode
Artificial
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Normal Precision
Output (Kg/H)
2 - 1500 Kg/H
Warranty of Core Components
1 Year
Key Selling Points
Automatic
Voltage
110 V/ 220 V/ 380 V
Production Capacity(Kg/H)
2-1500
Material
304 Stainless Steel
Range of Spindle Speed(r.p.m)
2800 - 7000 r.p.m
Feeding Size (mm)
1 - 15 mm
Video Outgoing-Inspection
Provided
Output Size (Mesh)
10 - 120 Mesh
Core Components
Gear, Motor, Engine
Transport Package
Export Standard
Specification
550X600X1250mm
Production Capacity
300 Set/Sets Per Month
Packaging & Delivery
Package Size
47.00cm * 74.00cm * 98.00cm
Package Gross Weight
88.000kg
Product Description

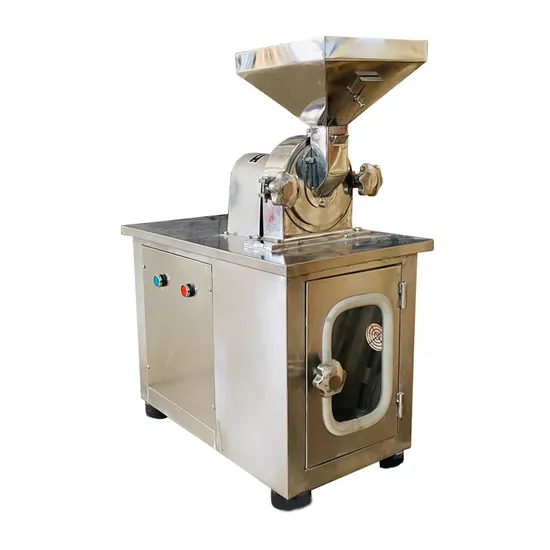

High efficiency wheat pulverizer grain crusher granules grinding machine
Grinding/Crusher Machine utilizes the high--speed relative motion between the moving and regular tooth set, which makes the material crushed through concussion, rub and crush. The structure of machine is simple and firm, the operation is steadily and the result of crushing is well. The materials are discharged directly from mainframe, the size of the granularity is gained through changing different pore size sieve.
Grinding machine consist of universal pulverizer, dust collecting cabinet and dusting collector, preventing dust flying during powder grinding, suits for pulverizing sugar, herbs, chemical products, food materials and spices etc into the powder of 20-120mesh.
| Model | Capacity (kg/h)
| Power (kw)
| Weight(kg) | Rotating speed(r/min) | Dimension(mm) | Fineness(mesh) |
| SF-130 | 2-5 | 1.5 | 65 | 7000 | 380*660*840
| 20-120 |
| SF-180 | 10-30 | 2.2 | 85 | 4000 | 420*780*880 | 10-120 |
| SF-250 | 100-250 | 5.5 | 155 | 4200 | 500*850*1350
| 20-120 |
| SF-320 | 120-300 | 7.5 | 230 | 4200 | 570*1150*1400
| 20-120 |
| 20B | 60-150 | 4 | 155 | 4500 | 550*600*1250 | 20-120 |
| 30B | 100-300 | 5.5 | 230 | 3800 | 600*700*1450 | 20-120 |
| 40B | 160-800 | 7.5 | 280 | 3400 | 800*900*1550 | 20-120 |
| 60B | 500-1500 | 18.5 | 380 | 2800 | 1000*900*1680 | 20-120 |
