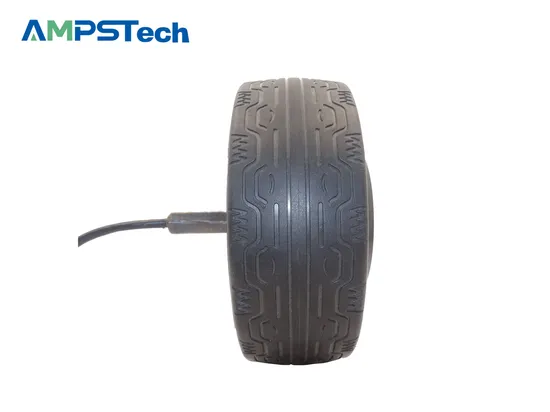

AMPS 8 Inch 15nm 24V 36V 48V DC Brushless Wheel Hub Servo Motor IP67 Waterproof for Robot Agv

Product Description

Company Profile Shenzhen AMPS Intelligent Technology Co., Ltd. is a well-known high-tech company focus on development and production of servo system and stepper system.
For AMPS's development concept, quality is always top priority, together with high cost-performance, it makes AMPS's products always got very good reputation in the market. The main products are hub servo motor, hub servo driver, automatic door controller, stepper driver, stepper motor, DC servo driver, DC servo motor, DC brushless driver and DC brushless motor, these products have been already applied to various market, such as service robots, transmission robots, disinfecting robot, floor-cleaning robot, advertising door controller, barrier gate controller and automation machines etc.Shenzhen AMPS Intelligent Technology Co., Ltd. Has a completely organization structure, like R&D department, Sales department, Oparation department, Production department, Marketing department, Quality department, Financial department. With the mature structure, AMPSTech can provide excellent service for all partners and customers.

Product Description AMPSTech hub servo motor integrated with motor,wheel and encoder together,it realizes the performance of high precise,high stability and low noise.
- Adopt servo control algorithm
- Size from 4.5 inch to 12 inch optional
- Rated torque from 1.1Nm to 30Nm optional
- UART,RS485 and CAN communication optional
- Multiple protection,such as short-circuit protection,overload protection,over-temperature protection,
over-voltage protection,uner-voltage protection,speed-loss protection.
Product Parameters

Parameters	WS80L-15A110C-MUGA03
RatedVoltage	36VDC
RatedCurrent	7.4Arms
Maximum speed	Rotary speed 110rpm Line speed 1.1m/s
RatedTorque	15N.m
Peak Torque	24N.m
InsulationResistance	≥200MΩ
Withstand voltage	600VDC 1SEC 10mA
RoHS	RoHS
Hardness Class	A68
Operating temperature	-10ºC~40ºC(Non-frozen)
Working humidity	5~95%RH(Non-condensation)
Stored temperature	-10ºC~70ºC (Non-frozen)
Storage humidity	Below 90%RH(Non-condensation)
Protection Class	IP67
