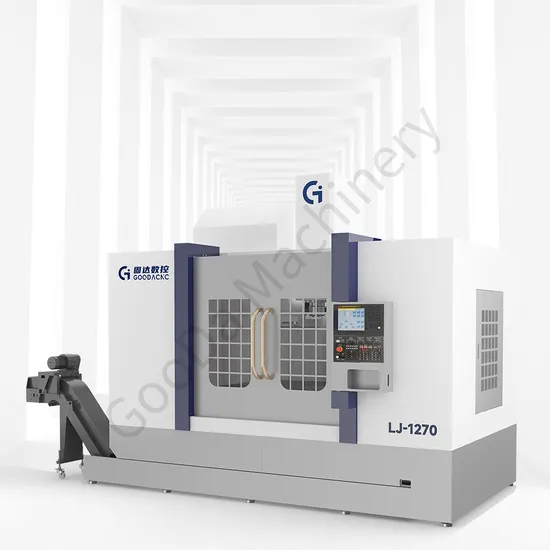

3 Axis Vmc Lj-1270 with Strong Cutting Force and High Efficiency

Product Description

Main Features
The medium-sized marvel that is the Precision 3 Axis VMC Vertical Machining Center LJ-1270 offers unparalleled versatility. It is engineered to perform a multitude of tasks in a single setup, including milling, drilling, boring, tapping, and thread milling, ensuring complete and efficient part machining.
This cutting-edge machine tool excels in small to medium batch processing for intricate parts such as cabinets, plates, disks, valves, housings, molds, and more, providing solutions for complex manufacturing challenges.
Main Functions
To achieve superior precision, the Z-axis utilizes high-rigidity hardway, while the X & Y axes are equipped with high-speed linear guideways that minimize vibration and eliminate creeping, guaranteeing smooth and stable operation at any speed.
Perfect technological process to ensure machines deliver outstanding accuracy and unwavering stability:
The HT-300 casting undergoes a secondary heat treatment (annealing) to enhance its durability and performance.
Spindle runout accuracy is meticulously maintained within a 0.01mm tolerance over a 300mm length, ensuring the spindle's precise accuracy and perpendicularity.
Scraping technics
Employing a collimator for guide rail straightness testing ensures impeccable alignment and operation.
Our dedicated team of experts is at your service, ready to assist in selecting the ideal machine tailored to your unique processing requirements. Get Expert Assistance Now! Examples of Processed Parts
Product Parameters

Model	LJ-1270
Category	Attribute	Value	Unit
Travel	X-axis travel	1200	mm
	Y-axis travel	700	mm
	Z-axis travel	700	mm
Worktable	Distance from spindle nose to table	175-875	mm
	Max. load capacity	1000	KG
	T-slot	5*18*120	mm
Spindle	Tool holder specifications	BT50-190	/
	Spindle speed	12000	rpm
	Driven type	Linear	/
Feed rate	X, Y, Z axis fast moving speed	24/24/24	m/min
	Cutting feed speed	1-10
Motor	Spindle Motor	11-18.5	KW
	Motor power X/Y/Z	Motor power X/Y/Z	KW
Accuracy	Positioning accuracy (X/Y/Z)	±0.005	mm
	Repeat positioning accuracy (X/Y/Z)	±0.003
Tools change	Tool magazine	24	T
Source	Power source	40	KVA
	Air source	6-8	kg/cm²
Size & weight	Machine size(L*W*H)	3730*3100*3100	mm
	Machine weight	about 7500	KG

Quality Control
Roughness measurement for the table surface is conducted using a precise roughness tester to ensure optimal smoothness.
Spindle dynamic balancing test is performed rigorously to uphold the highest standards of processing accuracy and efficiency.
Spindle pull force testing is meticulously conducted to accurately measure spindle tension, ensuring peak operational performance.
All machines must pass a thorough coordinate measuring machine (CMM) inspection, ensuring precision and quality before the machine leaves the factory floor.
Company Profile
Factory Display

Certifications

FAQ
Q1. What is your minimum order quantity and warranty?
A1: MOQ is one set, and the warranty is 12 months.
Q2. What CNC system do you use?
A2: FANUC, SIEMENS, MISTSUBISHI, etc. It depends on your choice.
Q3. When is the delivery time?
A3: For conventional machines, we will deliver them within 30-45 working days after receiving your deposit; For special machines, the delivery time may be longer, and we will provide you with an updated timeline accordingly.
Q4. What is the packaging for the machines?
A4: Packaging: PE bag cover (inside), plywood box, and steel beam frame. Other packing methods are also available.
Q5. How can I select the most suitable machine?
A5: Please let us know your machining requirements or the machine size, and we can recommend the best model for you.
Alternatively, you can choose the exact model yourself. You can also provide us with the product drawings, and we will help you select the most appropriate machine.
Q6. What are your trade terms?
A6: FOB, CFR, CIF, or other terms are all acceptable.
Q7. What are your payment terms?
A7: We accept T/T with a 30% deposit when placing the order and the remaining 70% balance before shipment.
We also accept an irrevocable letter of credit (LC) at sight.
Production will begin once we receive the advance payment. When the machine is ready, we will send you pictures. After receiving the balance payment, we will proceed with the shipment.
Q8: Are you a manufacturer or a trading company?
A8: We are a combined manufacturing and trading company, specializing in the innovative development and production of machine tools, with extensive experience in global exports. We warmly welcome you to visit our factory.
Q9: Can you provide OEM services?
A9: Absolutely. We are happy to create a customized plan based on your requirements and offer the best service to meet your needs.
Q10: How can we receive training for the machines?
A10: You can send your team to our factory for free training, or we can arrange for one of our engineers to travel to your location for on-site training.

---
