High Speed Multicolor Flexographic Printing Machine Film Flexo Printing Machines Combined with Film Blown Machine

Product Description

Product Parameters
Technical Parameter:
1) Ink Roller :Ceramic anilox roller
2) Ink :Adopt the automatic circle system ,running ink by single small motor
3) Timing :Adopt frequency speed control, small fluctuations running.
4) Unwinding and winding ways :Adopt magnetic powder tension control
5) Ink way :Chamber doctor blade and anilox roll
6) Up and down plate :Adopt the hydraulic pressure rising and down the printing plate automatically
7) Traction Rollers :Adopt small semi-enclosed bearings, with static balance and dynamic balance treatment, hard oxidation
treatment, small resistance, small beating.
8) Drying device: Two sets with ventilation hair heating devices, which use a central heating temperature control system and the control group
9) Body: Thick wall, thick base, making the machine more stable.
10) Control way: PLC control

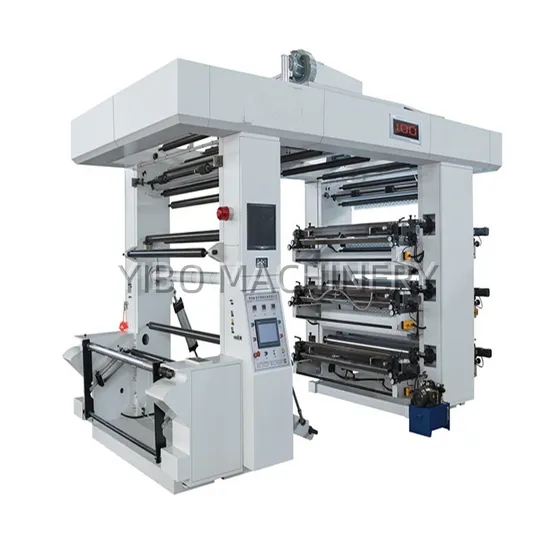

YB-6 Color 800mm Flexo Printing Machine Detailed Configuration Parameters
Printing Substrate:
Roll paper, plastic film, non - woven fabrics and other flexible packaging materials
The working principle of the machine (mainly including the following parts) :
Unwind unit-Prepress correction-Prepress traction-Printing unit(6 color)-heat drying-Rewind traction-Rewind unit-Control system and console
Basic parameter:
Model	YB-6 Color 800mm
Printing Color	6 color
Max material width	800mm
Max effective printing width	770mm
Printing length	280-1000mm
Mechanical speed	20-120m/min
Printing speed	20-100m/min(According to the printing of different materials)
Plate thickness (including double-sided adhesive tape)	2.28mm or 1.7mm(Customers can choose according to their own requirements)
Anilox roller	Ceramic anilox roller
Ink type	Water based ink or Solvent ink
Heating power	35KW
Total power	45KW
Machine weight	About:9200Kg
Machine size	5800*2300*3250mm
Working power supply	3P 380V 50HZ

Detailed Photos

Packaging & Shipping
Client

FAQ
Packaging & Delivery1.Packaging Details: wooden pallet or plastic film 2.Delivery Detail: 30-60 days 3.Port: Ningbo port 1.Where is your factory LocatedOur Factory Located in Ruian City ,Zhejiang Province ,China .It is about 40minutes by plane from Shanghai, about 5 hours by train fromShanghai .We are pleasured to pick up you when you arrived .2. What should we charge for your engineer?Our engineer is available to go to your country to install the machine for you. Buyer have to bear the charges including round-trip tickets, cost of visa and accommodations .Salary for one engineer is 150USD per day. 3. How long is your machine's warranty period?All our machine have one year guarantee, starting from finished installation.

---
