Best Choice of 30-200tph Trailer-Mounted Mobile Crusher in China

Product Description

Application
Mobile crushing plant is widely applied in metallurgy, chemical, building materials, hydropower industries where the working sites need moving from one place to another, especially in dealing with aggregates for highway, railway, and hydropower project. Customers can choose different configurations according to their specific requirements.
Advantages
1. Easy transportation, lower cost and wide application;
2. Short assembly time, flexible combination, and convenient installation;
3. Compact structure design and excellent crushing performance;
4. Space-saving and lower operation cost.
Technical Specification

Model	Vibrating feeder	Jaw crusher	Belt conveyor	Chassis frame	Capacity (t/h)	Overall dimensions (l*w*h)(mm)
AM724J46	GZT0724	PE400×600	B650×8M	Bi-axis	15-60	10500×2800×3700
AM938J57	ZSW380X95	PE500×750	B650×8M	Bi-axis	40-100	13000×2900×4100
AM938J69	ZSW380X95	PE600×900	B800×8M	Bi-axis	60-140	13200×2900×4600
AM1149J710	ZSW490X110	PE750×1060	B1000×8M	Tri-axis	90-230	15000×2900×5700
AM1349J912	ZSW490X130	PE900×1200	B1200×8M	Four-axis	150-350	17000×3100×5800

Model	Vibrating screen	Cone crusher	Belt conveyor	Chassis frame	Capacity (t/h)	Overall dimensions (l*w*h)(mm)
AM1235Y900	3YA1235	PYB900	B650×7M	Bi-axis	50-90	13700×2800×5700
AM2160Y1200	3YA1848	PYB1200	B800×7M	Bi-axis	110-200	15200×3500×6450
AM1848S36	3YA1548	PSGB0918	B650×7M	Bi-axis	80-120	13700×3150×5700
AM1860S51	3YA2160	PSGB1321	B1000×8M	Tri-axis	130-220	15200×3150×6400

Model	Vibrating screen	Impact crusher	Belt conveyor	Chassis frame	Capacity (t/h)	Overall dimensions (l*w*h)(mm)
AM1235F1007	3YA1235	PF1007	B650×7M	Bi-axis	15-60	10800×2480×5170
AM1548F1010	3YA1548	PF1010	B650×7M	Bi-axis	50-90	12700×2800×5700
AM1848F1210	3YA1848	PF1210	B650×7M	Bi-axis	70-130	13500×3150×6000
AM1860F1214	3YA1860	PF1214	B800×8M	Bi-axis	90-180	15500×3150×6400
AM2160F1315	3YA2160	PF1315	B1000×8M	Tri-axis	120-250	16200×3500×6700
AM2460F1315	3YA2460	PF1320	B1400×8M	Four-axis	160-350	16200×3500×6700

Photo at Our Client's Quarry

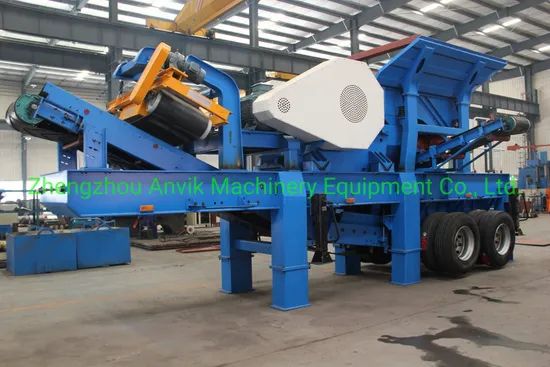

Photo at Our Factory

---
