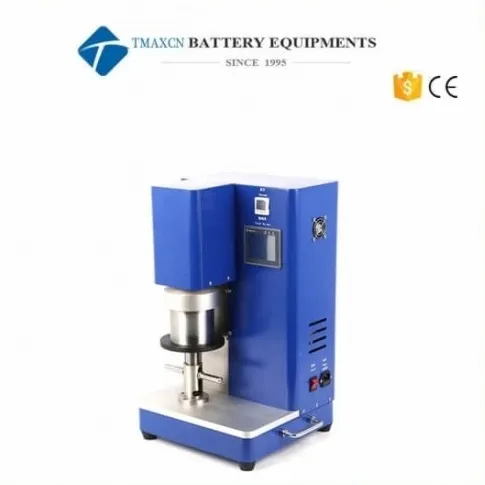

TMAXCN Brand Battery Vacuum Planetary Mixing Machine 500ml

US$2,500.00-7,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
TMAX-XJB
Application
Lithium Battery Vacuum Mixer
Certification
CE, ISO
Warranty
1 Year
Transport Package
Wood Packing
Specification
20-100 foot cabinet
Trademark
TMAX
Origin
China

Product Description

Compact Dual-Shaft Planetary Vacuum Mixer TMAX-XJB is a compact dual-shaft planetary vacuum mixer. Compared to single shaft models, the dual shaft mixer comes with three segments programmable mixing speed from 0 - 600 rpm, which provides more uniform slurry mixing. It has a built-in pump for removing gas bubble, which can vacuum the mixing container to -0.08 MPa. It is a high-quality mixer tool for preparing battery electrode paste and various ceramic materials in a research lab. Welcome new and old customers to contact us for slurry mixer.
Specifications:
Voltage Input & Power One UL listed 100-240 VAC IN
Rotary Speed 0 - 600 rpm
Mixing Container 1. One 500 mL stainless steel vacuum sealed container is included.
2. Dual helical ribbon mixing blades are built on the lid of the container.
Vacuum Pump Built-in single stage vacuum pump
Vacuum Level: -0.08 MPa
Contol Panel 1. Color touch screen control allows easy setting of parameters such as mixing speed, mixing time, vacuum on/off
2. Mixing Time: 0 - 600 minute
3. Mixing Speed: 0 - 600 RPM and 3 segments programmable
4. Note: Max. mixing speed depends on slurry viscosity. Max.10000 mPa.s is allowed at 600 rpm. Lower speed will be required for more sticky slurry
Timing Range 0 to 120 minutes for built-in mechanical timer
Dimensions 330 mm x 320 mm × 570 mm
Compliance CE Certified
Warranty two years limited warranty with lifetime technical support
Net Weight 40 kg (88 lbs)
