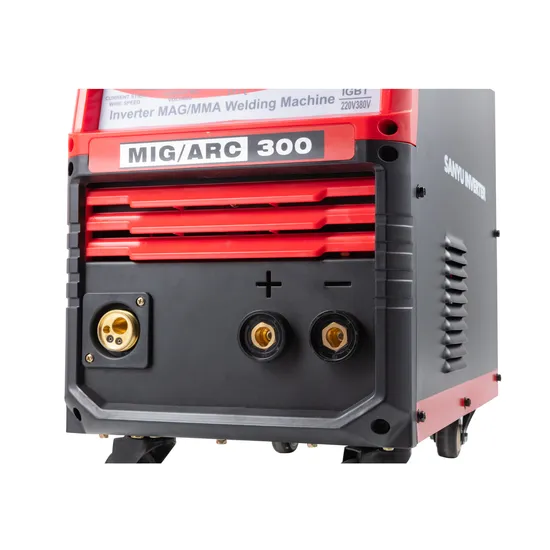

IGBT Inverter Welding Machine MIG-300 MMA MIG Welder

Product Description

Product Description
1. Stable arc burning, reliable use expedient adjustment.
2. ISO2000/CCC/CE certification.
3. CO2 welding machine manufacturer.
CO2 Weding Machine Functions and Features:
IGBT contra variant technology, current mode control, reliable quality, stable performance Closed loop feedback, constant voltage output, strong network voltage fluctuation resistance (+-15%) Electric reactor control, stable welding, small splash, deep weld pool, good forming Slow \ wire feed while arcing and cutting ball after welding ensure arc striking power Suitable for welding mediate and thin plates above 0.8mm Small volume, light weight, simple operation, economical and practicalThe welding wire with a diameter of 0.6mm can realize stable welding during 30A. Applicable in automobile industry, steel door & window industry, furniture industry, etc.; Saving cost and able to replace the tap welder

Model	MIG160	MIG200	MIG250
Input power voltage(V, HZ)	AC220± 15%, 50/60		three phase 380± 15% 50/60
Rate input power capacity(KVA)	7.4	7.5	9.2
Input Current(A)	32	33	22
Rate output current(A)	160	200	250
Output current range(A)	10~160	50~200	50-250
Rate output voltage range(V)	11~24	15~26	15~29
Rate output voltage(V)	21	24	26.5
Duty cycle(%)(25° C)	35(10° C)	60	60
Efficiency(%)	85	85	85
Power factor(COSφ )	0.7	0.85	0.9
Weight(KG)	18	25	26.5
Overall dimension(mm)	480× 230× 360	500× 263× 430	500× 230× 440
Insulation class	F	F	F
Protection class	1P23	1P23	1P23
Feeding speed(m/min)	1.5-16	2.0-16	2.5-13
Diameter of the wire board(mm)	200	270	270
Suitable thickness(mm)	> 0.8	> 0.8	> =0.8
Diameter of wire(mm)	0.6/0.8/0.9	0.8~1.0	0.8~1.0

---
