Product Details
Product Description
Product Description

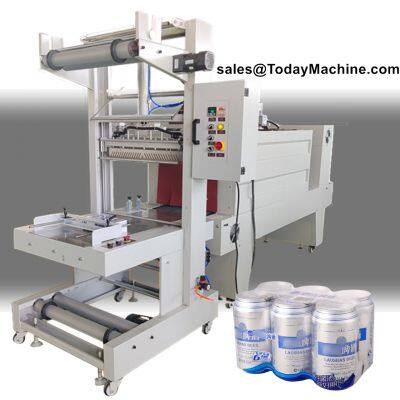

Sleeve Wrapper
A sleeve wrapper is a type of packaging machine used in the manufacturing industry to wrap products in a plastic film or sleeve.
Semi-auto Vs. Automatic type
Sleeve wrappers are used to package and seal products using a film that is wrapped around the product and sealed on the sides. They are commonly used in a variety of industries, such as food and beverage, pharmaceuticals, and consumer goods. Sleeve wrappers are available in both manual and automatic types. Here are some differences between the two:
1. Semi-auto Sleeve Wrapper: Manual sleeve wrappers are operated by hand and require the operator to place the product into the wrapping area and manually activate the sealing mechanism. Manual sleeve wrappers are best suited for low-volume applications, such as small businesses, or for packaging products of various sizes and shapes.
Advantages of Manual Sleeve Wrapper:
1. Lower cost compared to automatic types.
2. More flexible for different product sizes and shapes.
3. Suitable for low-volume applications or small businesses.
Automatic Sleeve Wrapper: Automatic sleeve wrappers are fully automated and require minimal operator intervention. They are designed for higher-volume applications and can be customized to fit specific product sizes and shapes. Automatic sleeve wrappers can include features such as infeed conveyors, collators, and auto film splicing.
Advantages of Automatic Sleeve Wrapper:
1. Higher production capacity than manual types.
2. Minimal operator intervention required.
3. Can be customized to fit specific product sizes and shapes.
In summary, the choice between a manual and automatic sleeve wrapper depends on the specific needs of the business. If you have a low-volume application, manual sleeve wrappers can be a cost-effective option. However, if you require a higher production capacity or need to package products of specific sizes and shapes, an automatic sleeve wrapper may be a better choice.
Industry applications
Sleeve wrappers are commonly used in industries that require the packaging of products with a protective and secure wrapping. Some common industry applications for sleeve wrappers include:
1.Food and Beverage: Sleeve wrappers can be used to package food products such as baked goods, confectionery, snack foods, and beverages.
2.Personal Care and Cosmetics: Sleeve wrappers can be used to package personal care products such as shampoo, soap, and lotion, as well as cosmetic products such as perfumes, make-up, and skincare items.
3.Pharmaceuticals: Sleeve wrappers are used to package pharmaceutical products such as medicines, vitamins, and supplements.
4.Home and Personal Care Products: Sleeve wrappers can be used to package a range of home and personal care products, such as cleaning supplies, laundry detergents, and other household items.
5.Industrial Products: Sleeve wrappers can be used to package industrial products such as automotive parts, electrical components, and machinery parts.
Overall, sleeve wrappers are a versatile packaging solution that can be used across a wide range of industries and applications where secure and protective packaging is required.
Maintenance
Maintenance for a sleeve wrapper can help ensure that the machine runs smoothly and efficiently, which can extend its lifespan and prevent breakdowns. Here are some general maintenance tasks that can be performed on a sleeve wrapper:
1.Cleaning: Regularly cleaning the sleeve wrapper is important for preventing build-up of debris and ensuring that the machine operates smoothly. The machine should be cleaned at the end of each day or shift, and any spills or debris should be promptly removed.
2.Lubrication: The moving parts of the sleeve wrapper should be lubricated regularly to prevent friction and wear. Check the machine manual for recommended lubrication intervals and use the appropriate lubricant.
3.Belt Tension: The tension of the machine’s belts should be checked regularly to ensure that they are properly tightened. Loose belts can cause slippage or other issues.
4.Electrical Components: The electrical components of the sleeve wrapper, including switches and sensors, should be inspected regularly for wear or damage. Any issues should be addressed immediately to prevent safety hazards or machine malfunctions.
5.Replacement of Wear Parts: Over time, certain parts of the sleeve wrapper may wear out or become damaged. These parts, such as blades or sealing wires, should be replaced as needed to prevent issues with the machine’s performance.
It is important to consult the machine manual for specific maintenance instructions and intervals for your particular sleeve wrapper model, as different machines may have different maintenance requirements.
Technical parameter for Sleeve wrapper
Model
| XK-5540
| XK-7040S
| XK-6040
| XK-7040A
|
Type
| Semi-auto
| Semi-auto
| Automatic
| Automatic
|
Max film width
| 560mm
| 700mm
| 560mm
| 700mm
|
Film thickness
| 0.03-0.25mm
| 0.03-0.25mm
| 0.03-0.25mm
| 0.03-0.25mm
|
Film type
| PE
| PE
| PE
| PE
|
Max packing size
| 420(L)x270(W)x330(H)mm
| 520(L)x370(W)x360(H)mm
| 400(L)x330(H)mm
| 700(L)x400(H)mm
|
Speed
| 0-6 pcs/min
| 0-8 pcs/min
| 0-6 pcs/min
| 0-12 pcs/min
|
Power
| 1.8kw
| 1.8kw
| 2kw
| 1.5kw
|
Power Supply
| AC 220V50/60Hz
| AC 220V50/60Hz
| AC 220V50/60Hz
| AC 220V50/60Hz
|
Diamention
| 1020x840x1850mm
| 1130x1050x2000mm
| 2150x1200x2020mm
| 1550x1000x1850mm
|
Weight
| 240kg
| 330kg
| 350kg
| 400kg
|
>>
