High Automatization Q20L1 All Electric High Speed Blow Moulding Machines

Product Description

Product Description

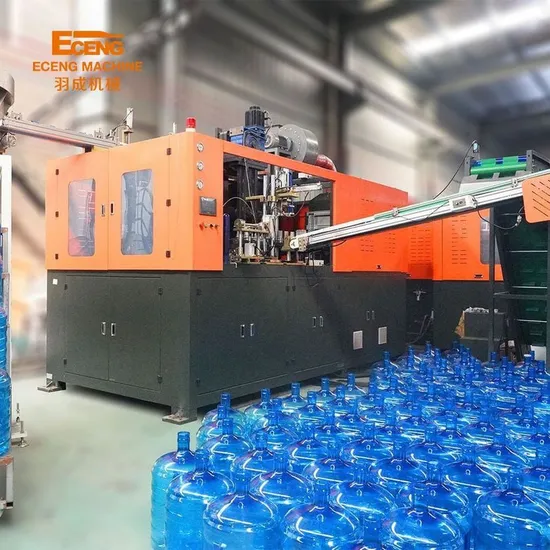

High-Speed All-Electric Blow Molding Machine
The Q series fully automatic blow molding machine is developed by our company based on the current international advanced bottle-making technology. It has the characteristics of a high degree of automation, stable and reliable machine performance, simple structure, high production efficiency, power saving, low noise, and products are not polluted by intermediate links. It is widely used in the production of food, beverages, cosmetics, and medical containers.
Product Parameters

SPECIFICATION
Model	Q20L1
Bottle type specification	Cavity	1
	Max.volume	20L
	Bottle mouth maximum overall DIdiameter	150mm
	Bottle biggest diameter	240mm
	Bottle maximum height	450mm
Production specification	Theoretical output	300~600BPH
	Bottle type capacity	20L
	Bottle type	circular
Power specifications	Light tube quantity	40pcs
	Light tube power	2.5KW
	Maximum heating power	48KW
	All electric machine installation	51KW
	Actual consumption	35.7KW
Air pressure specification	Work pressure	7-9kg/cm2
	Low-pressure gas consumption	1600L/min
	Blow bottle pressure	25-35kg/cm2
	Higher -pressure gas consumption	3400Ltr/min
Forzen water specification	Work pressure	5-6 kg/cm2
	Temperature range	10ºC
	Consumption	6000kcal/hr
	Forzen water flow	50L/min
Machine specification	Size of the machine	4.12x1.8x2.25
	Weight of the machine	3ton

Detailed Photos
ADVANTAGE 1
The company's hot-selling main model has been tested in the market for more than ten years and has been continuously improved to meet the mass production mode.
ADVANTAGE 2
There is a safety locking device in each mechanical action process to protect the operator's safety.
ADVANTAGE 3
The use of cylinders instead of hydraulic cylinders has less pollution and low noise.
ADVANTAGE 4
Equipped with high pressure and double crank connecting rod-clamping, it provides high clamping force to ensure that there is no obvious mold line on the bottle body.
ADVANTAGE 5
The whole machine has stable quality, low scrap rate, and good cost performance. It is the preferred model for first-line packaging companies.

FAQ
Q1: Are you a factory or trading company?
A1: We are a factory.
Q2: Where is your factory located?
A2: Our factory, near Shanghai & Ningbo port, is located in Zhangjiagang, Jiangsu.

Q3: How about quality control in your factory?
A3: " Quality is the key point, do what customers need"
Eceng Machinery Factory focuses on quality, and quality control from beginning to end. Every piece of goods is tested strictly before packing and delivery.

Q4: How about guarantee?
A4: One-year guarantee.

Q5: Do you provide bottle blow mold and air compressor?
A5: Yes, we provide a complete system and you will not need to find a suitable air compressor chiller...etc.

Q6: What is the language of the PLC and touch panel?
A6: Don't worry, we will translate the language into English, Spanish, or any other language, to make sure you will have an easy operation.

---
