Automatic Powder Coating Spray Booth for Aluminum Profiles, Metal Furniture

Product Description

COLO is a professional manufacturer and exporter that is concerned with the design,development and production of different kinds of powder coating equipment: powder coating line,powder coating gun,powder coating booth,curing oven,reciprocator,sandblasting machine etc.
Product Description

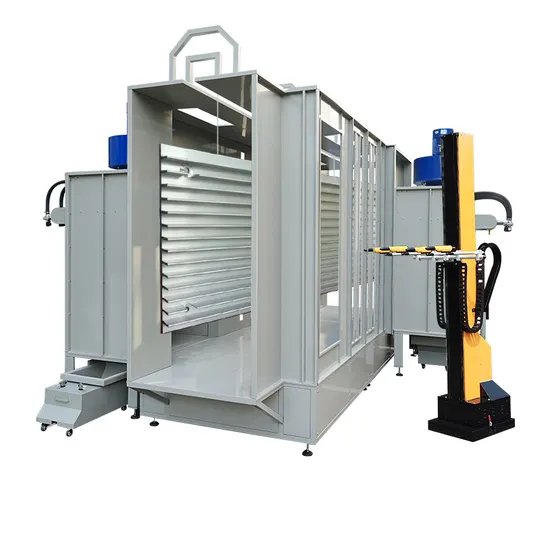

Automatic Powder Coating Spray Booth for Aluminum Profiles, Metal Furniture
This automatic powder coating spray booth with filter powder recovery system, suitable for less color change and need powder recovery. Booth design with 2 auto openings and 2 manual coating openings.Working with automatic reciprocators, automatic powder coating guns,and manual coating guns, powder sieve machine.
Detailed Photos
Automatic Powder Coating Spray Booth Features
PLC Controller
- Full-function and compliant PLC controller with safety interlock comes standard on all models.
- Convenient, simple-operation control panel that includes a main power switch, extraction fan start/stop switches, cartridge-filter pulse-jet device timer and safety interlock switch, etc.


High-precision Filters
- Size: D325 * H900mm.
- Quick-release type cartridge filters are easy to remove and replace.
- These filters with smaller and more uniform pores ensure 100% separation.
- Superior quality polyester spunbonded fabric materials enhance filters' lifespan.
Pulse-jet Filter Cleaning System
- Filter cleaning is carried out with programmable pulses from a PLC.
- The filters retain their capacity to release powder paint through a self-cleaning system.
Powder Collector
- Powder recovered by cyclones is collected in the powder collector, and then transfered automatcially through a powder supply equipment, in order to mix with fresh powders and feed back to the system.
- This powder collector also supports to be operated manually.
Specifications
Automatic Powder Coating Spray Booth Specifications

Model	COLO-S-0825
Operating Dimensions	Width800 * Height2000 * Depth4000mm
Overall dimensions	Width1200 * Height2580 * Depth5000mm
Power Supply	220V/380V, 3Phase, 50-60HZ
Fan Power	5.5kw, 2 sets
Filter Count	12 pcs(2 stages), Quick-release Type
Filter Material	Polyester
Filter Cleaning	Pneumatic

Customer cases
We have cooperated with over 100 countries, and have built manual powder coating plant, automatic powder coating lines for various industrial applications in customer's factories, and got good feedbacks.

Recommend products
These recommend products (Track Powder Curing Oven, Automatic Reciprocators, Powder Feed Center...) can help you get good job during automatic or semi automatic powder coating work.
Packaging & Shipping
-Packing: Peral cotton or wooden box , machines delivered in assembly.
-Delivery: 20 work days after get the payment
Company Profile
We have the advace production facilities,CNC punching machine, bending machine,laser cutting machine etc, and good production space that can ensure our productive capacity and efficiency.
We own a development technology team with rich experience and professional sales&service team in the powder coating industrial,that enable us give the quality ensured powder coatng equipments and service to customer from all over the world.

---
