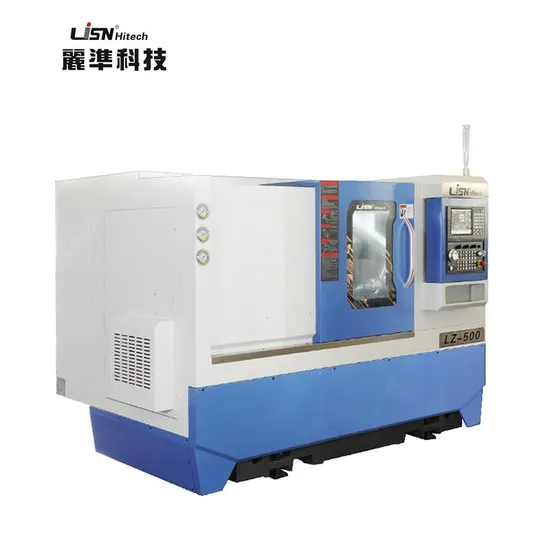

Lz-450 High Quality Slant Bed CNC Metal Lathe Machine with Good Feedback

Product Description

Product Description
1.This machine is a two -coordinate (longitudinal Z,horizontal X) continuous control horizontal CNC lathe .lt has higt processing performance for the processing of shft and disc parts.lt is suitable for large batch size ,high processing precision and dimensional consistency.lt requires high processing of parts ,especially suitable for ,aerospace ,automtive ,mold,instrumentation and other mechanical processing industrise,and efficient,high -volume ,high -precision machining of parts.lt is a high effciency,high precision,high quality,high efficiency,low cost machine tool.
2.The machine tool adopts a mechanical, electrical and hydraulic integrated structure, and the overall layout is reasonable. Its high speed, high precision and high rigidity provide users with high efficiency and high reliability in use. The key purchased parts are purchased through bidding, and the products of well-known manufacturers are selected to ensure the precision and reliability of the machine tool. The whole machine adopts a closed full protective structure, which conforms to the principle of ergonomics and is easy to operate, which is conducive to safety and reduces the pollution to the production and operation environment.
Main Features
Slant bed 45 degree, Spindle bore diameter 86mm, Max.swing over bed 560mm, Max. Turning length 500mm, CNC controller system, main spindle servo motor 11kw, Spindle unit speed 3500rpm, Taiwan linear guideway, 10 inch hollow type hydraulic 3-jaw chuck, 8-station servo turret, One-piece bed, Hydraulic tailstock, Chip conveyor with cart, Automatic cooling and lubrication system, Work light, Alarm light Detailed Photos

Product Parameters

Specifications	MODELS→	LZ-450	LZ-460
Max. Swing Over Bed	mm	450	460
Max. Processing Diameter	mm	200	400
Max. Processing Length	mm	300	350
CNC System	-	GSK(Optional: Mitsubishi/Fanuc/Siemens/KND/HNC)
Chuck Size	-	A2-5	A2-5(8″)200mm6″150
Spindle Motor Power	Kw	5.5	7.5
Spindle Speed Range	rpm	5000	4000/5000
Bar Diameter	mm	032/O42	56
X.Z-Axis Limit Stroke	mm	120/320	210/400
Turret Station	-	8T	80-12T
Max Travel Of Tailstock	mm	250	300
Taper Hole Of Tailstock Sleeve	-	4#	4#
Machine Dimension	mm	1400x1500x1600	1730x1270x1328
Net Weight	kg	1800	3400

Company Profile
Lizhun Machinery Co., Ltd. is a company focused on innovation, development and production of CNC machining centers and CNC lathes. Adhering to the spirit of innovation and excellence, the company has provided many famous enterprises at home and abroad with extremely superior machines in performance, precision and quality. In the future, Lizhun will continue to maintain the spirit of innovation and excellence to provide strong and lasting support for the processing industry, and provide excellent processing machines for 5G, aviation, automobile and other industries.
Lizhun Machinery Co., Ltd. is located in Dongguan, Guangdong province. The product exhibition hall is located in Songshan Lake, Dongguan City, with beautiful scenery and elegant working environment. The factory is located in Dalingshan, with complete facilities and experienced staff. The staff has many years of experience in innovation, development, assembly and production, which ensures that each machine has extremely outstanding quality and performance when it leaves the factory.
The factory covers a large area and has multiple production lines to ensure production capacity and supply capacity. Excellent capacity and supply capacity can ensure that customers can receive the machine within the agreed time which can avoid a series of problems caused by insufficient capacity.

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at

---
