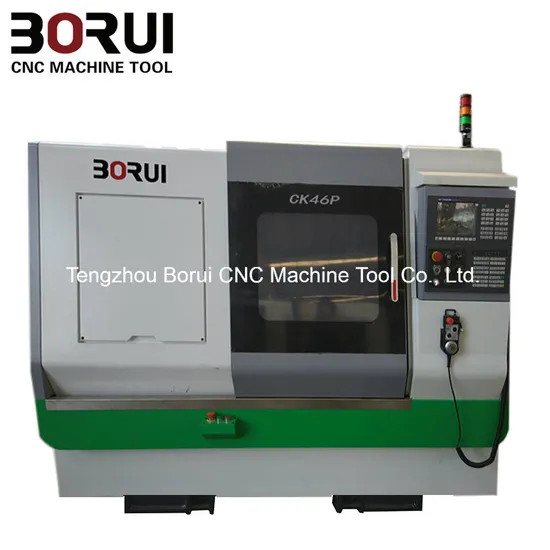

Ck46p Slant Bed CNC Lathe Machine

Product Description

CK46P Slant Bed CNC Lathe Machine Product Application
The Machine Tool is slant bed Turn-Milling Machine, which has X, Y, Z, C axis, and controlled by servo motor. It has a compact and reasonable structure, the spindle (C axis) driven by servo motor. This machine not only can turn excircle, end face, thread of Rod type and Plate type work piece in kinds of material, but also can mill, drill kinds of radial and axial hook face, etc. many kinks processes. This machine is suitable to process small work piece in a high efficient
The main specification :

Item		CK46P
Max. Swing diameter over bed		360mm
Max. Swing over carriage		110mm
Max. turning length		600mm
Carriage length		330mm
Distance between carriage of spindle		55mm
Spindle nose		A2-5
Spindle speed range		50-5000r/min
Hole through spindle		56mm
Spindlemotor		5.5kw
Travel	X Axis	410mm
	Z Axis	330mm
Turret		Rank tool
Rapid speed	X Axis	24000mm/min
	Z Axis	24000mm/min
X/Y/Z Positioning accuracy		0.003mm
X/Y/Z repositioning accuracy		0.006mm
Weight		2.3t
Overall dimensions		2400X1550X1600mm

Standard Accessories:1.System: GSK988
2.Living tool type : End 4+Side 4
3.Living tool : ER20
4.Living toll speed : 3000rpm
5.X/Y/Z axis GSK servo and motor
6.8 station Hydraulic chuck
7.42mm Collet chuck
8.Lighting system
9.Cooling system
10.Automatic lubrication system Optional Accessories: 1.Siemens,Fanuc
2.6" Hydraulic 3-jaw chuck
3. Automatic Bar feeder
4. Automatic chip conveyor
CNC Controller system: GSK; FANUC; Siemens; KND
The main feature :
CK46P Slant bed CNC lathe Configuration
CNC System 988T. FANUC 0i mate TD
X/Z Axis Servo : GSK Servo motor and driver.
Spindle(C Axis) motor: GSK 5.5kw servo spindle motor and driver.
X/Z Axis leadscrew adopts HIWIN or PMI 4010-C3 ballscrew.
X/Z Axis linear guideway adopts HIWIN or PMI linear guideway.
Spindle: Sleeve type spindle adopts NTN or NACHI bearings.
Chuck: 42mm collet chuck, optional adopts Taiwan 6" hydraulic chuck.
Hydraulic Cylinder: Taiwan.
Ball screw bearings: NTN or NACHI bearings
Turret: Rank tool.
Optional: Feeding machine, Receiver, Chip conveyor, Manipulator.
Product Details
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
