Fiber Grade Pet Bottle Washing Equipment (TL1500)

Product Description

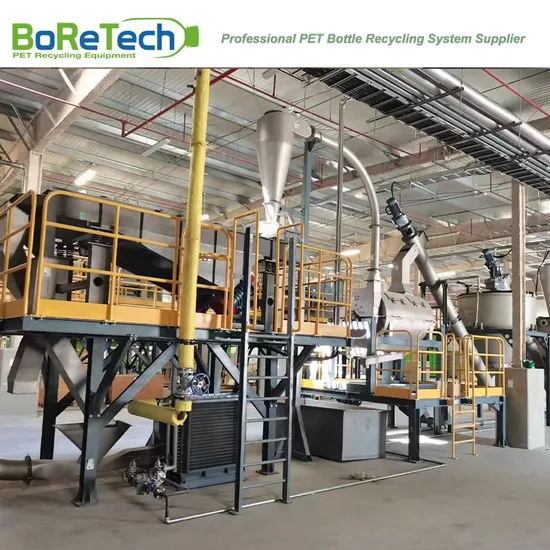

fiber grade pet bottle washing line
The Process is used to recycle big capacity and stable quality raw material, especially for PSF manufacturer and recycled POY manufacturer with big capacity.
The Process Flowchart:
Debaling- Metal Separation-Label Separation-Bottle Pre-washing-Manual Sorting -Wet Crushing- Hot Flotation- Friction- Continuous Rinsing-Drying-Dust Removal-Packing
Specification:
Power: ~400 KW
Capacity: 1.5 Mt/hour Input
Area Requirement: 700m2
PET Flakes Quality Standard Reference Table:

No.	Item	AA Grade(ppm)	A Grade (ppm)
1	PVC content	≤30	≤100
2	PP/PE/ Color Flakes / Metal/Other impurities content	≤70	≤100
3	Total impurity content	≤100	≤200

Estimated Plant Parameters :

capacity (kg/h)	Installation power (kw)	Required area (m²)	Manpower	Steam Consumption(kg/h)	Compressed Air (m²/min)	Water Consumption(m³/h)
500	200	500	8	280	0.5	0.75
1500	400	700	12	700	0.5	2.25
3000	600	900	18	1300	0.7	4.5
6000	900	1200	30	2300	1	9

Production consumption Table:

No.	Item	Average Energy Consumption per ton Flakes
		TL-600 0	TL-3000	TL-1500	T-500
1	Electricity Consumption (KWH)	100	120	130	140
2	Steam (kg)	400	450	500	600
3	Washing Detergent (kg)	8	8	8	10
4	Water Consumption (ton)	1.5	1.5	1.5	1.5

* The above parameters are calculated based on the standard configuration; bottle bales types, quality and factory management level will affect the final actual consumption
* Water consumption parameters are calculated based on wastewater reuse system
1,pre-sale support:
Normally we suggest you paint our standard color , but we can supply customization paint service by paid.
2,after-sale service:
Warranty:1 year for machinery,6 months for electrical.
For mechanical parts, our guarantee duration is 12 months. If the part is broken within this period, we will send the spare parts immediately to the client for repairing.
3,technical support:
Normally, we send our engineer(s) to supervise the installation and commissioning. The buyer need to prepare the operation staff to implement it. BORETECH is able to send mechanical engineer, electrical engineer and operation engineer. The operation engineer is to help the buyer's labors to know how to operate the washing line and get the best efficiency.
Boretech is one of the major supplier of PET bottle recycling system in Asia . We uses the around 30 years of fiber making and bottle recycling experiences to manufacture PET Bottle recycling machine and configure Pelletizing line, Polyester Staple Fiber line, POY line and Bottle to Bottle Line. At present, we have supplied about 170 sets plant for more than 30 countries.Our customers in the US, Japan, EU manufacture food grade rPET resin for such well-known brand owner's such as Coca Cola, Niagara Bottling, Nestle, etc.
Boretech can help our customers to make right configuration of the machinery, and find the right position in the industries. The most important value is that we can help our customers to minimize the learning cost and to avoid making any mistake during investment.

---
