High-Performance Hydraulic Radial Drilling Machine for Precision Milling

Product Description

Product Description

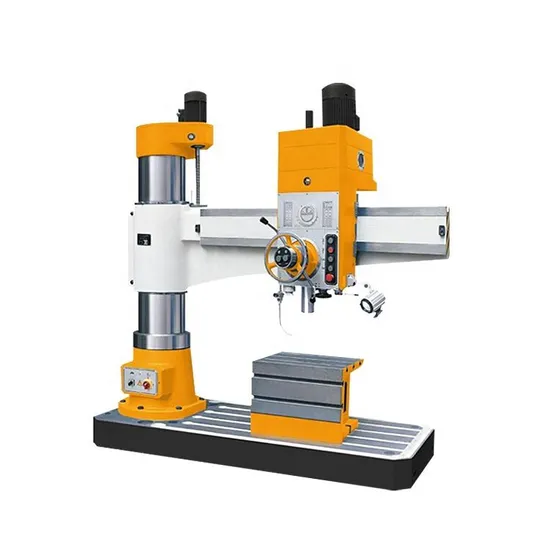

Z3032 x 9 Z3032 x 10 radial drilling machine
Specifications
1. Hydraulic clamping.
2. Hydraulic transmission.
3. Hydraulic preselection.
4. Electrical machinery double protection
Z3032 x 9 Z3032 x 10 radial drilling machine
Product Descriptio
Z3032 x 9 Z3032 x 10 radial drilling machine
With antisticlooking and its general arrangement is very harmonized.
With mechanical gear change, convenient to operate.
With comatic automatic ascent and descent cranking bar and production efficciency is high With confident construction, high precision and durable in use.

Specification\Model	15170	15171	15172	15173	15174	15175
	Z3032 x 9 Z3032 x 10	ZQ3035 x 10	ZQ3040 x 10	ZQ3040 x 13	ZQ3050 x 13	ZQ3050 x 16
Max. drilling dia. (mm)	32	35	40, 35	40, 35	50	50
Spindle taper	MT4	MT4	MT4	MT4	5#	5#
Spindle speeds/steps	108-1000/6	75-1200/6	75-1220	75-1220	80, 135, 240, 350 ,590, 1100
Distance from spindle center to column surface (mm)	780-220	1000-300	1000-300	1300-300	1300-360	1600-360
Distance from spindle center to table surface (mm)	980-220	1000-260	1000-260	1000-260	1050-260	1050-260
Spindle travel (mm)	120	180	200	200	200	200
Range of spindle feeds (mm)	Optional	0.10-0.32	0.10-0.32	0.10-0.32	0.10-0.32	0.10-0.32
Overall dimensions (mm)	1320 x 600 x 1900	1450 x 700 x 2050	1500 x 705 x 2020	1700 x 705 x 2120	1950 x 810 x 2450	2170 x 950 x 2450
Motor (kw)	0.85/1.5	1.1/2.2	2.2/0.75	2.2/1.1	4/1.5	4/1.5
N.W. (kg)	800	1100	1530	2200	2700	3200
