Basic Info.
Controlling Mode
Artificial
Cylindrical Grinder Type
Universal Cylindrical Grinder
Certification
CE, ISO 9001
Speed of Woking Table
3-20m/Min
Max,Distance From Spindle to Table
450mm
Wheel Size
200X20X31.75mm
Hydraulic Station Motor
1.5kw
Transport Package
Wood Case
Production Capacity
100PCS/Month
Product Description

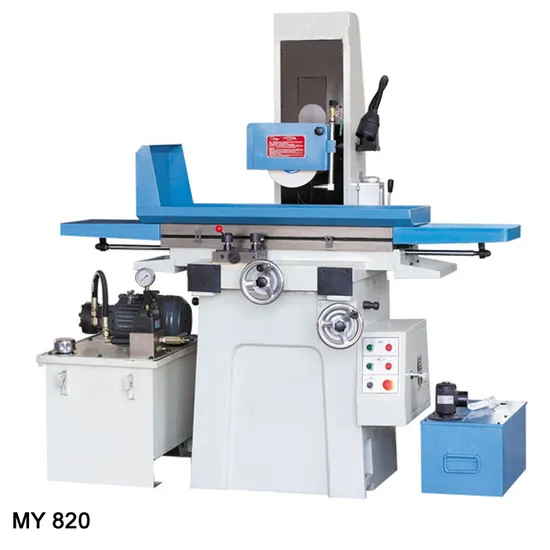

Automatic Hydraulic Surface Grinder price for sale
| Model | Units | MY820 | MY1022 | MY1224 | MY1230 |
| Table Size (L×W) | mm | 480*220 | 540*250 | 600*300 | 750×300 |
| ( L×W) |
| table travel | mm | 530x220 | 560x260 | 630x320 | 780x320 |
| speed of working table | m/min | 3-20 |
| Distance From Spindle to table | mm | 450 | 450 | 530 | 530 |
| Table Slide way | / | V-type rail with Steel-ball | Double V-type rail |
| V-type rail with Steel-ball | kg | 200 | 200 | 250 | 250 |
| Number of T -Slot | mm*n | 14*1 |
| Cross Feed On Handwheel | mm | 0.02/Graduation 2.5/revolution | 0.02/Graduation 4/revolution |
| Vertical Feed On Handwheel | mm | 0.01/Graduation 1.25/revolution | 0.01/Graduation 2/revolution |
| Wheel Size (dia.×width×bore ) | mm | 200*20*31.75 | 250*25*76.2 |
| wheel Speeds(50HZ) | rpm | 2850 | 2450 |
| Spindle Motor | kw | 1.1 | 1.5 | 2.2 | 2.2 |
| Hydraulic station motor | kw | 1.5 | 1.5 | 2.2 | 2.2 |
| Rapid Up and down Motor | w | | 120 | 120 |
| Working Pressure | Mpa | 3 | 3 | 4 | 4 |
| Max.Capacity | L/min | 18 | 18 | 20 | 20 |
| Fuel tank capacity | L | 80 |
| Packing Size (L×W×H) | mm | 1700*1200*1940 | 1300*1620*1900 | 1960*1640*2020 | 1960*1640*2020 |
| Net,Gross | kg | 750/850 | 900/1000 | 1300/1430 | 1400/1530 |
Our Services
1. Your inquiry and email will be replied within 24hours.
2. If you need to develop products with your own specification, we can help you to work it out.
3. Always be honest, never lie to customer, and never declare anything we don't have.
4. Customer First:,we offer best Quality and Service!
FAQ
1. Payment Method:
30% deposit T/T in advance, rest against the copy of B/L or before delivery.
2. Delivery Time:
one week
3. MOQ:
1 set machine.
If you need machine with your own specification, logo, packing, etc, please negotiate with us.
4. Shipping:
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS
>>
