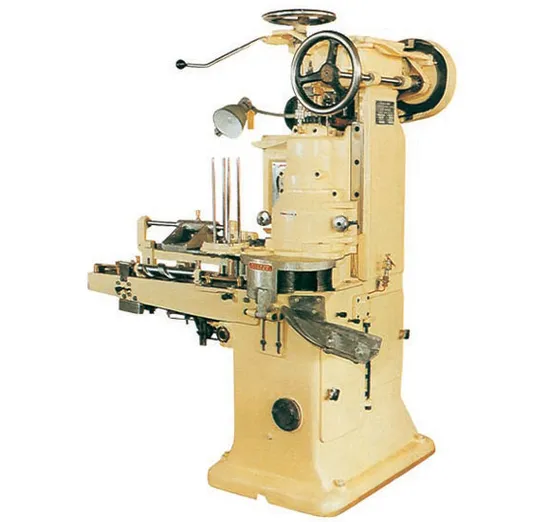

Vacuum Capping Machine, Tinplate Can Capping Machine, Vacuum Can Sealing Machine, Fully Automatic Can Making Equipment

Product Description

Product Description
Vacuum sealing machine is a device commonly used for food packaging and item sealing. It uses vacuum technology to extract the air from canned products and then quickly seals them, thereby extending the shelf life of the products.
Application:
Equipment composition:
The vacuum sealing machine consists of a vacuum pump, a control system, a sealing system and a conveying system. When working, first put the product to be packaged into the can, and then place the filling mouth in the sealing groove of the sealing system. Next, start the vacuum pump, which will extract the air from the canned product to create a vacuum environment. Finally, the sealing system quickly closes the bag mouth and completes the sealing process. Through such a work process, the vacuum sealing machine can effectively prevent food from deteriorating and inhibit bacterial growth, while maintaining the original appearance and texture of the items. The length of the entire machine is 1210 mm, the width is 1460 mm, and the height is *2000 mm. Machine weight is 700kg. The vacuum degree is adjustable, and the production capacity is 1500-1800 per hour. The main parts of the base are made of cast iron and comply with food and drug hygiene standards. It has a high degree of automation and simple operation. It has the functions of automatic lid dropping, automatic vacuum sealing, continuous irrigation control without lid, shutdown alarm and other functions, which greatly improves the safety of this machine.
Features:
Vacuum can automatic can sealing machine Food assembly line semi-automatic can sealing machine
Product Usage: Suitable for sealing cans of liquid beverages and other foods, and can be used with assembly line equipment to achieve industrialized automatic production.
1. The structure is reasonable and stable, convenient and fast, and improves production efficiency;
2. Excellent sealing performance to ensure product qualification rate (residual oxygen content can reach less than 2%, vacuum degree can reach -0.097Mpa);
3. You need to press the button with both hands at the same time to trigger the device action, making the operation safer;
4. The can body does not rotate during the sealing process, and the sealing hob rotates to complete the sealing. It is reliable and safe and prevents materials from being thrown out. It is especially suitable for sealing and packaging of fragile products and liquid products;
5. The hob and pressure head are made of Cr12 mold steel, which is durable and has good sealing performance;
6. It is extremely simple and clear to use.

Detailed Photos

Product Parameters

Production capacity	42 pieces/min
Applicable tank diameter:	52-105 mm
Applicable tank height	50-280 mm
Randomly equipped motor	Y100L6V 1.5 kW
Overall dimensions	1210×1460×2000 mm
Equipment net weight	1500kg

Company Profile
ChangeZhou Jinma is an equipment manufacturer: focusing on the development and sales of automated production and packaging equipment for innovative ingredients (Hantian crystal balls, sandwich popping beads, etc.) in the beverage industry.
Jinma provides overall solutions: providing customers with customized overall solutions including workshop layout design, formula, process, equipment installation and commissioning and training.
Jinma is a high-tech enterprise: established in 2014, and was rated as a high-tech enterprise in 2019 and 2022.


After Sales Service
Technical Support
1. Customised machine;
2.Customized layout drawings;
3.Commissioning and installation before delivery;
4.Overseas engineers to install and debug ,Training ;
5.Formula debugging;
6.Upgrading and transformation, make your equipment back to a better state and solve the problem of insufficient output;
7.24-hour online technical support and service.

FAQ
Q:Are you a factory or trading company ?
A:We are a factory specializing in manufacturing, R&D, and have our own foreign trade rights and production equipment.
Q:Could you please send me your best price?
A:Yes, we cherish every cooperative customer and work hard to facilitate transactions.
And before quoting,please kindly consult us and provide:
Your expected capacity for machine.So that we can recommend the most corresponding machine.
Q:When is your delivery time ?
A:Single machine:30-45 working days.Production line:60-75 working days after 30%-50% deposit received.
Q:When is your payment term ?
A:Payment shall be 30%-50% deposit by T/T,balance 50%-70% paid by T/T,D/P after inspection but before shipment.
Q:Can you make machines based on customer's design ?
A:Yes,we can customized. According to your special request,we can design solution and provide service scheme.
Q:How to handle the installation and test for machine?
A:Our engineers are available to service overseas to install and train local staff.Specific arrangements will be explained clearly in each quotation.
Packaging and shipping:
Wooden box---solid wood or multi-layer wood,What materials to use are determined based on the actual situation.

---
