Semi Automatic SMT Screen Printer Ys600 for Large LED Board Solder Pasting

Product Description

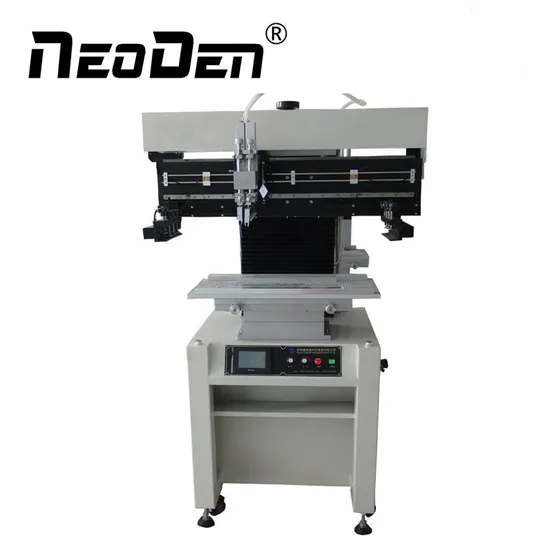

Semi-auto printed circuit board screen printer YS600
Be used for PCB lead pasting in SMT assembly production line
Product Parameters

Model	YS600
Printing area	700*320mm
PCB fixed system	Pin positioning
Frame size	L(750-850)*W(370-470)
Adjusting for table	front/rear±10mm,left/right±10mm
Printing Accuracy	±0.2mm Repeating Accuracy:±0.2mm
PCB thickness	0.2-2.0mm
Air source	4-6kg/cm2
Power supply	AC220V 50HZ
Dimension	L900*W700*H1700
Packing size	1350*900*1850mm
Net weight	265kgs
Gross weight	310kgs

Detailed Photos
Customers Case
FAQ What is solder paste?
Solder paste is a mixture of metal solder powder and flux - the two elements required to successfully solder together two pieces of metal. Much like any other form of solder, such as solder strip or wire, you can get solder paste in different types of alloys including silver and gold. You can also get solder paste that melts at different temperatures (hard, medium, easy). Essentially, solder paste is like any other form of solder you can buy - you just have the added advantage of it being pre-mixed with flux.
How to apply solder paste? 1. One of the best things about using a solder paste syringe is the fact that it comes in a syringe! This makes the application of solder paste incredibly precise - excellent for soldering jump rings together. Simply remove the cap from your syringe and secure the needle that comes with it in place.
2. Check that the metal you're soldering is clean and free from any debris or greasy fingerprints. This can interfere with the soldering process making it much more difficult for your solder to flow nicely through the joint.
3. Make sure that the join you're soldering is completely flush. File until you can no longer see any light seeping through the join. This will make sure that your solder joint is as strong as possible and help the solder paste flow nicely through the join.
4.Apply a small amount of solder paste to the solder join or area of metal that is going to be soldered. Apply a little pressure to the syringe plunger - you'll soon get used to the pressure required to apply the tiny amount of solder you need to solder findings.
Wipe away any excess solder paste from the syringe and replace the cap. Get into the habit of doing this immediately after each use to maintain the consistency of your solder paste for longer.
Simple smt assembly process
NeoDen provides a full SMT assembly line solutions, including SMT reflow oven, wave soldering machine, pick and place machine, solder paste printer, PCB loader, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment.

---
