Wolf 2000kg/2t Small/Mini Excavator with Zero Tail

Product Description

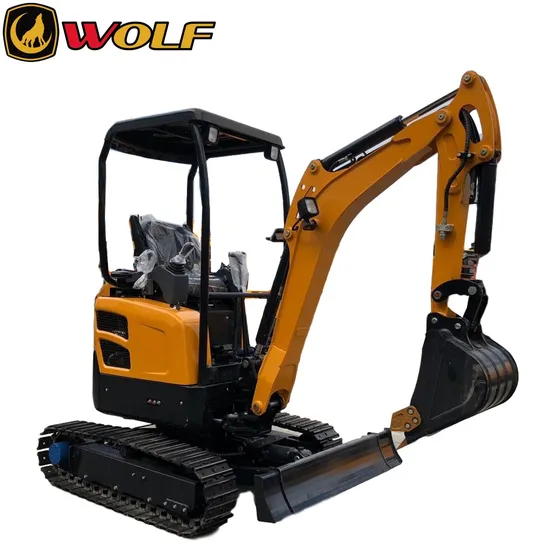

WOLF WE20 2 Ton mini Excavator with Rubber Track

Product Feature And Advantage

Zero tail design,small size and easy to transport, could be loaded onto light truck or small trailer,extended track could reduce the width to 990mm. Original Kubota engine,reliable duration, low noise and high efficiency. Most advanced loading sensing system and self developed hydraulic debug technology ensure the machine's operation easy and comfortable. Famous brand hydraulic system parts ensure the stable quality. equipped with double fuel filter to guarantee fuel purity to protect engine boom deflection design meet narrow work condition, reinforced rubber track to protect road extend hydraulic line for various attachments. comfort seat make operator easy to work. Could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, paper making factory etc. and could replace 4~5 manpower.
Standard configuration:
Engine:Kubota E5 14.2kw
Max. Digging Depth:2400mm
Max. Digging Height:3700mm
Max. Dumping Height:2440mm
Dimension(L×W×H):3555X990/1300x2290mm
Operation Weight:1900kg
With adjustable rubber tracks and swing arm, Zero tail
Optional:
Quick hitch, all kinds of attachments
such as 300mm bucket, 800mm bucket,
435mm bucket, grappe, hammer, thumb bucket, auger etc.
Specifications:

Engine Model	Kubota 14.2kW/2200rpm
Engine Type	Direct injection, water cooled, natural intake
No. of cylinder	3

Swing Speed	r/min	0-9
Traveling Speed	km/H	2.8
Grade ability	%	70(35°)
System rated pressure	Mpa	21.5
Ground Pressure	Kpa	30
Tracking Force	Kn	15.2
Bucket Digging Force	kN	18
Arm Digging Force	kN	11

Overall Length	mm	3555
Overall Width	mm	990/1300
Overall Height	mm	2290
Ground clearance	mm	150
Undercarriage width	mm	990
Dozer Blade	mm	1050×240

Operation Weight	KG	1900
Bucket Capacity	m3	0.07
Max. Digging Radius	mm	4040
Max. Digging Depth	mm	2400
Max. Digging Height	mm	3700
Max. Dumping Height	mm	2440
Max. Dozer Cutting	mm	270
Max. Dozer Lifting	mm	240
Boom Deflexion (Left/Right)	°	75/45
Tail Swing Radius	mm	650

Technical Drawing
Packing and delivery:
4 sets in one 20GP; 8 sets in one 40GP
For different market with different engines, Kobuta Euro5 engine for Europe market and Kubota Tier4 engine for North America market.
Surely, there is also other different models to meet your different demands:

Wolf mini excavator from 800kg to 2500kg
Model	WE08	WE10	WE12	WE16	WE18	WE20	WE25
Weight	800kg	1000kg	1040kg	1600kg	1800kg	2000kg	2500kg
Engine	Koop KF192 Euro5	Koop KF192 Euro5	Yanmar3TNV70S	Yanmar3TNV70S	Laidong3TE25(EFI engine)	Kubota D1105 Euro5	Laidong3TE30(EFI engine)
Power	7kw	7kw	10kw	10kw	18.1kw	14.1kw	22.1kw
Hydraulic system working pressure	16Mpa	16Mpa	16Mpa	16Mpa	16Mpa	21.5Mpa	20Mpa
Swing speed	0-13r/min	0-13r/min	0-13r/min	0-15r/min	10-12r/min	0-9r/min	12-14r/min
Travelling speed	1.5km/h	2km/h	2km/h	2.3km/h	2.8km/h	2.8km/h	2.8km/h
Grade ability	30°	30°	30°	30°	35°	35°	35°
Traveling Tracking Force	8.5KN	8.3KN	8.5KN	13.5KN	15KN	15KN	15KN
Bucket Digging Force	9.5KN	7.2KN	9.5KN	11KN	11.5KN	18KN	11.5KN
Arm Digging Force	5KN	4.6KN	5KN	7.9KN	9.3KN	11KN	9.3KN
Overall length	1877mm	2840mm	2770mm	3290mm	3800mm	3555mm	4080mm
Overall width	896mm	880mm	896mm	1050mm	1050mm	990/1300mm	1300mm
Overall height	1990mm	2200mm	1990mm	2400mm	2280mm	2290mm	2280mm
Axle base	896mm	900mm	896mm	1140mm	1050mm	1270mm	1270mm
Track width	130mm	180mm	130mm	180mm	230mm	250mm	250mm
Max. Digging Radius	2850mm	3065mm	2850mm	3470mm	3860mm	4040mm	4370mm
Max. Digging Depth	1650mm	1715mm	1650mm	2150mm	2050mm	2400mm	2450mm
Max. Digging Height	2550mm	2600mm	2550mm	3275mm	3370mm	3700mm	3700mm
Max. Dumping Height	1800mm	1830mm	1800mm	2310mm	400mm	2440mm	2450mm

All of the machines are CE approved, quality can be assured.

---
